I2S
The Inter-Integrated Circuit Sound (I2S) bus has three data bits: Serial Clock (SCK), Word Select Line (WS) and Multiplex Data Line (SD).
Application: Audio
Signal: SCK, WS, SD
Voltage: 2.0V and 2.4V
Logic Analyzer / MSO
| TB3016E | MSO2116E (w/ analog channels) | MSO3124V (w/ electrical validation) |
 |
 |
 |
| TB3000 series Specifications PDF | MSO2000 series Specifications PDF | MSO3000 series Specifications PDF |
 |
|
|
| Model | TB3016E | MSO2116E | MSO3124V |
| Decode / Trigger | y | y | y |
| Analog Channels | y | y | |
| Electrical Validation | y |
I2S Decode / Waveform
Save as TXT/CSV
In Logic Analyzer mode, click the icon above the report area to save the decoded data as a TXT/CSV file. |
 |

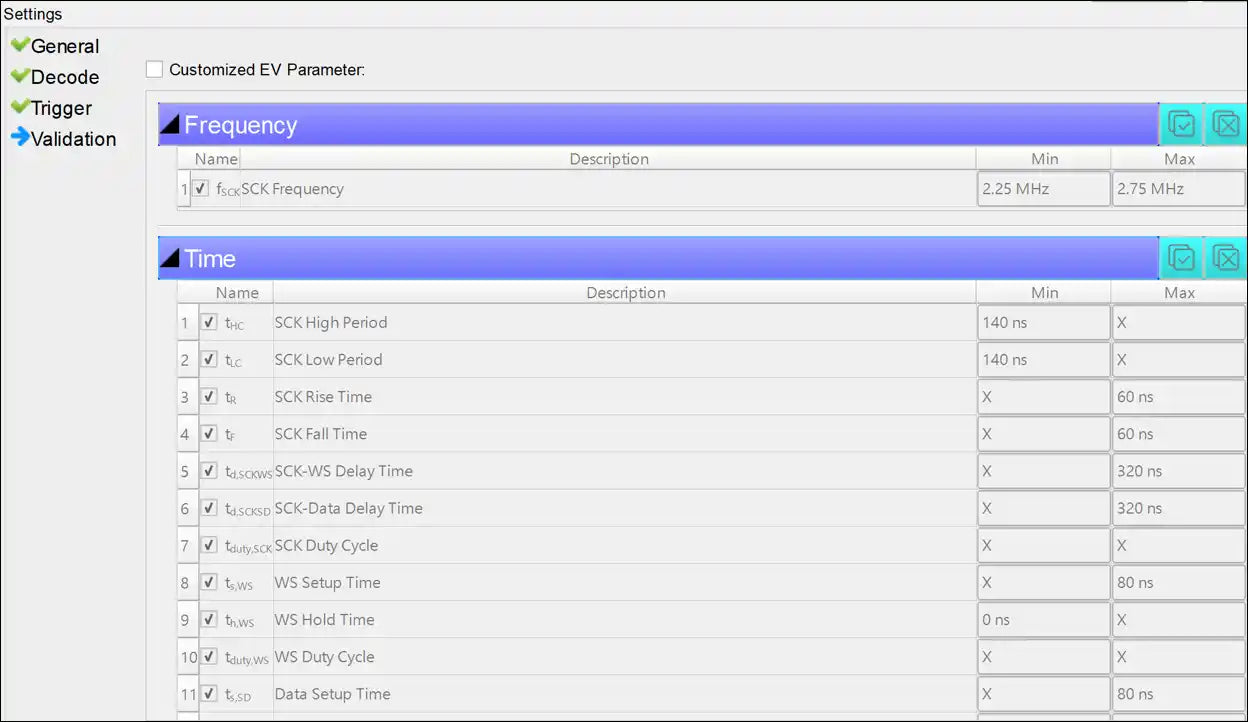

I²S Electrical Validation
Use an oscilloscope for I²S electrical validation to ensure compliance with defined specifications. After an extended burn-in test, the oscilloscope confirms that the electrical characteristics of the signal meet the required standards.
Supported Models: TS3124V (4-channel DSO), MSO3124V (4-channel DSO + 16-channel LA)
 |
Electrical Validation Solution PDF |
I2S Decoding Setup Steps1. Click Quick Settings or Add Protocol Decode to select a protocol for logic analyzer capture. 2. Select I2S for decoding. 3. If you use Quick Settings, the system will recommend configurations for trigger type, sampling rate, voltage threshold, and channel settings. 4. Click the icon to access the Decode Settings screen |
 |
Decode SettingsChannel: Display channels (CH0 and CH1). Channel: Show the selected channels (CH0, CH1 and CH2) and set Data bits (16 bits). Display the audio waveform: Click to display the audio waveform in the Waveform Window. Playback: Click to display the audio from the speaker. Save as WAV file: Click to save the data to a audio file(.wav) in the work directory. Mode: I2S Justified/MSB Justified/LSB Justified/PCM/TDM. Report: Select the column number.
|
 |
I2S Decoding Examples
