MIPI RFFE Electrical Validation

MIPI RFFE Electrical Validation


Use an oscilloscope for MIPI RFFE electrical validation to ensure compliance with defined specifications. After an extended burn-in test, the oscilloscope confirms that the electrical characteristics of the signal meet the required standards.


Supported Models:

TS3124V (4-channel DSO)
 TS3000 Specifications PDF MSO3124V (4-channel DSO + 16-channel LA) MSO3000 Specifications PDF

Overview Report


Detail Report


Reference Point Dialog & Waveform


HTML Report


MIPI RFFE Electrical Validation Settings

1. General Settings: Channel sources, working voltage and speed

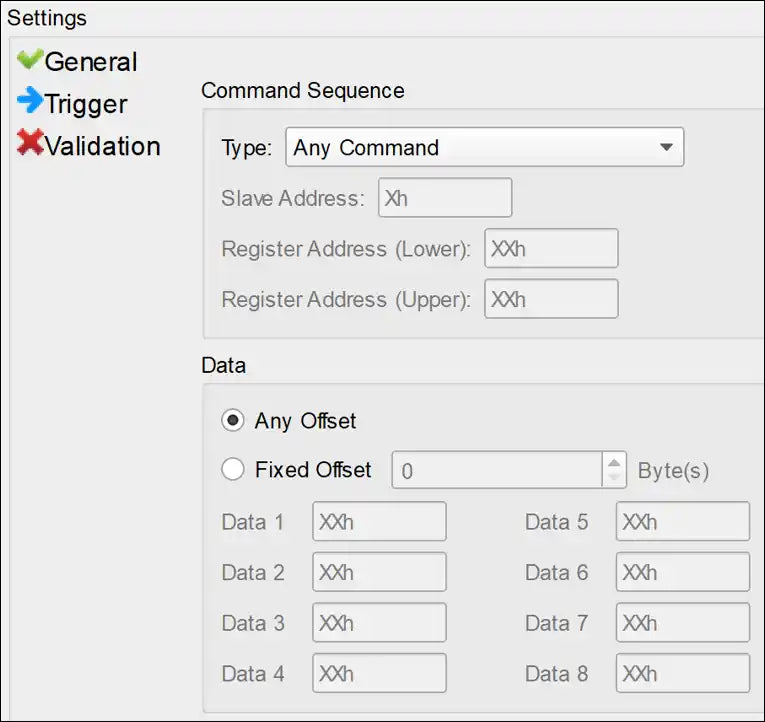

2. Decode Settings:

3. Electrical Validation Parameter Settings: Frequency, Timing, Voltage limitation


4. Software EV control panel:

Stop Conditions:
Stop when acquired X times
Stop when Result Fail > X times

Information:
Select waveform

Save File:
Save as Html
Save as .MOW (Software format)


Electrical Validation Solution PDF
