TS3124E
SKU: TS3124E
Ce produit a été discontinué
Nous recommandons le TS3124B en remplacement.
About the TS3124E

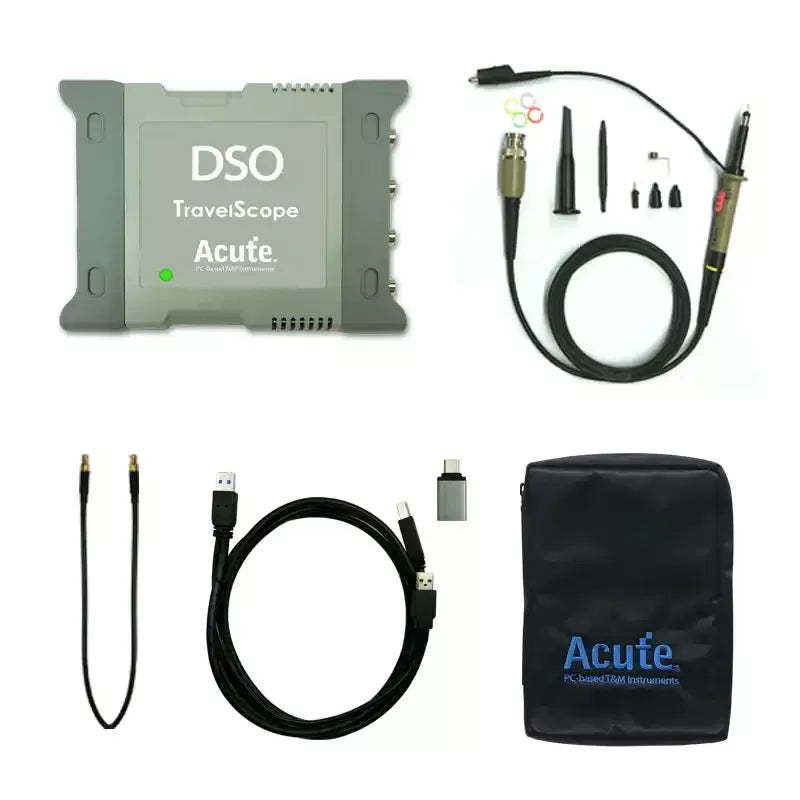

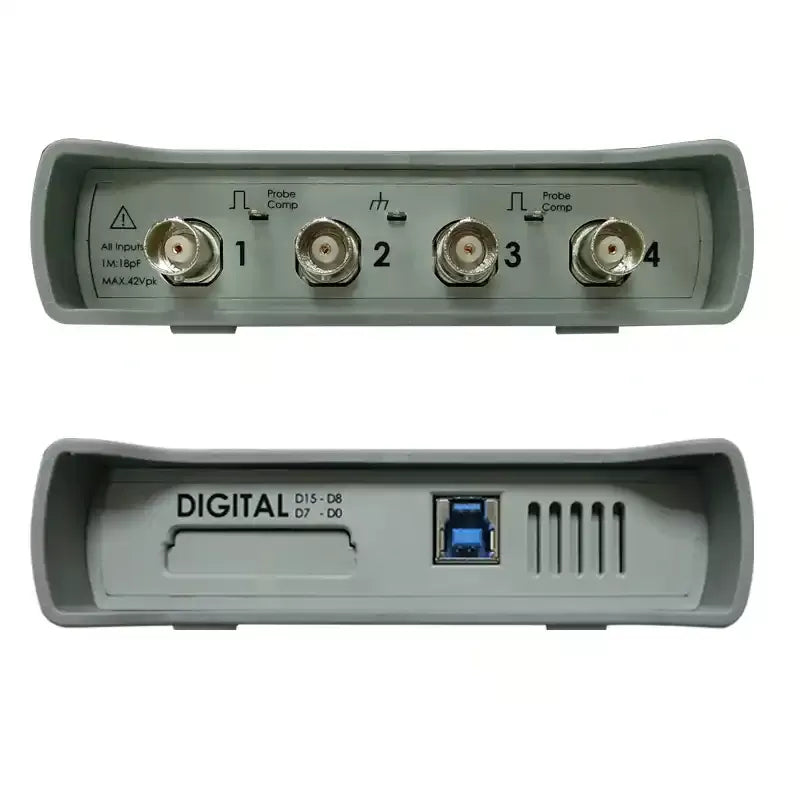

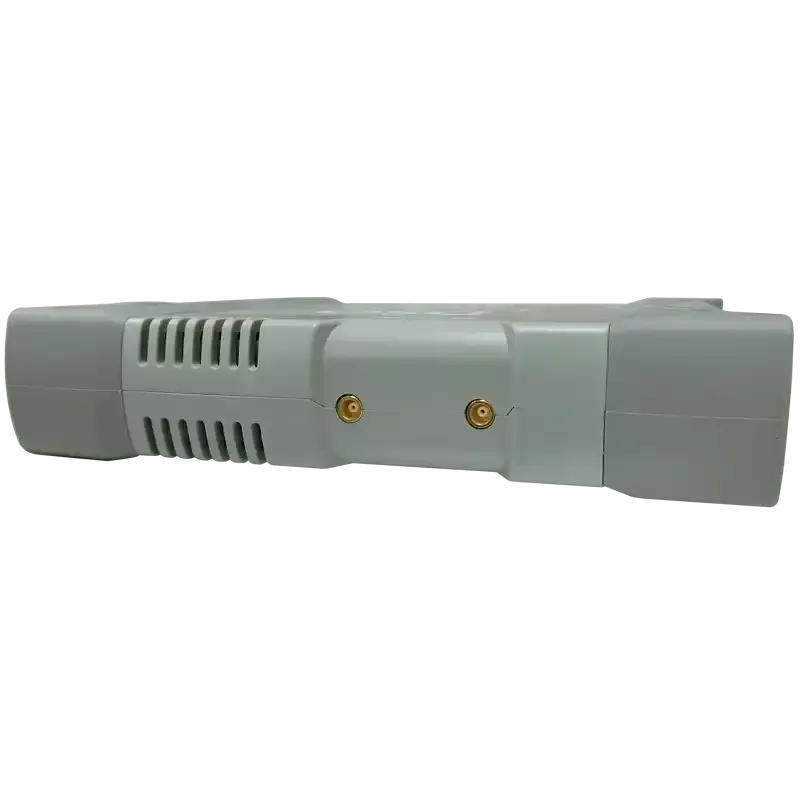

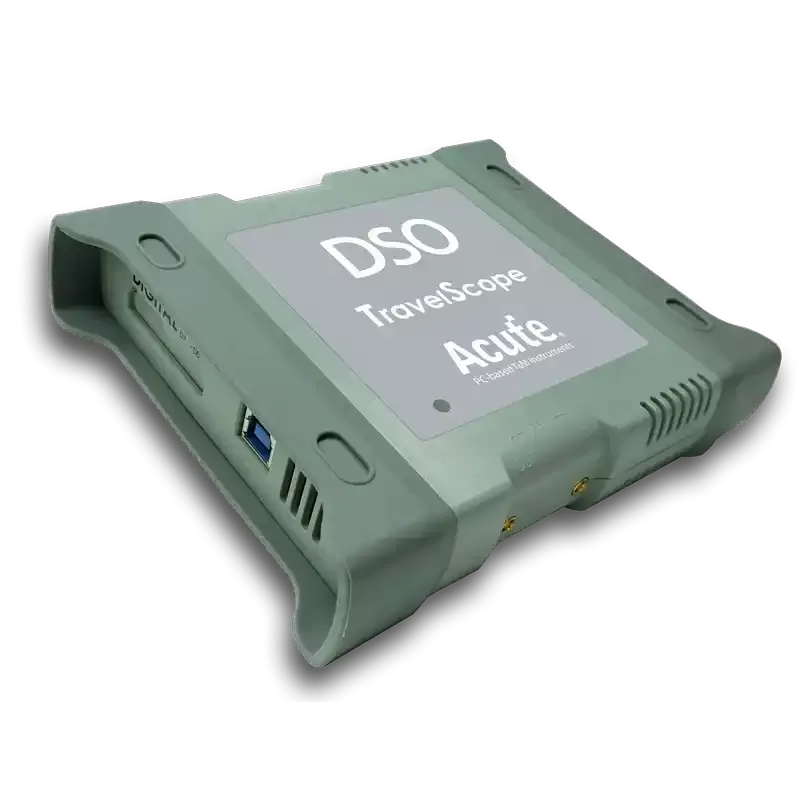

The TS3124E is a 4-channel PC-based digital oscilloscope with 200 MHz bandwidth and 1 GS/s sample rate. It includes 120+ protocol decoders and basic edge triggering — a cost-effective entry point for analog signal analysis with protocol decode capability.
Key Highlights
- 4 analog channels, 200 MHz bandwidth
- 120+ protocol decoders at no extra cost
- Compact USB 3.0 design
- Stack with TravelBus or TravelLogic for mixed-signal analysis
| Channels | 4 analog (8-bit) |
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Trigger | Edge |
| Protocol Decode | 120+ |
| Interface | USB 3.0 |
| OS Support | Windows 10 / 11 · Linux (beta) |
Une application Linux native est disponible en version bêta.
Télécharger depuis GitHubSupport de protocoles
70+ protocoles décodés · 20+ avec déclenchement matériel
76 protocoles pris en charge·DDécodage TDéclenchement EVValidation électrique
| Protocole | Décodage | Déclenchement |
|---|---|---|
| I2C | D | T |
| MIPI I3C | D | T |
| SPI | D | T |
| UART | D | T |
Aucun protocole ne correspond à votre recherche.
Compare Série TravelScope Models
See how the TS3124E compares to other models in the Série TravelScope series.
| Specification | TS3124E Discontinued | TS3124B | TS3124H | TS3124V |
|---|---|---|---|---|
| Analog Channels | 4 | 4 | 4 | 4 |
| Bandwidth | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Sample Rate | 1 GS/s | 1 GS/s | 1 GS/s | 1 GS/s |
| Record Length | 128 Mpts/ch | 128 Mpts/ch | 128 Mpts/ch | 128 Mpts/ch |
| Vertical Resolution | 8 bits | 8 bits | 8–16 bits | 8–16 bits |
| DSO Trigger | Group I | Group I, II | Group I, II | Group I, II |
| Protocol Trigger/Decode | — | Tier I | Tier I | Tier I, II |
| Electrical Validation | — | — | — | I2C, I3C, SPI, UART... |
| List Price | — | $1,200 | $1,800 | $2,800 |
DSO Group I: Edge, Either, External, Falling, Rising, Video, Width
DSO Group II: Runt, Pattern/State, Timeout, Transition, Setup/Hold, B-Trigger, Window
Protocol Tier I: BiSS-C, CAN 2.0B/FD, DALI, DP AUX, MIPI I3C, USB PD 3.1
Protocol Tier II: SVI3, SVID (restricted access)
Téléchargements
Logiciels
Application software for TravelScope 3000 and MSO3000 series instruments. Includes DSO, logic analyzer, and protocol decode. Windows 10/11.
Linux application for the TravelScope 3000 series. Separate native Linux app — currently in beta. Download the latest release from GitHub.
