TS3124B
SKU: TS3124B

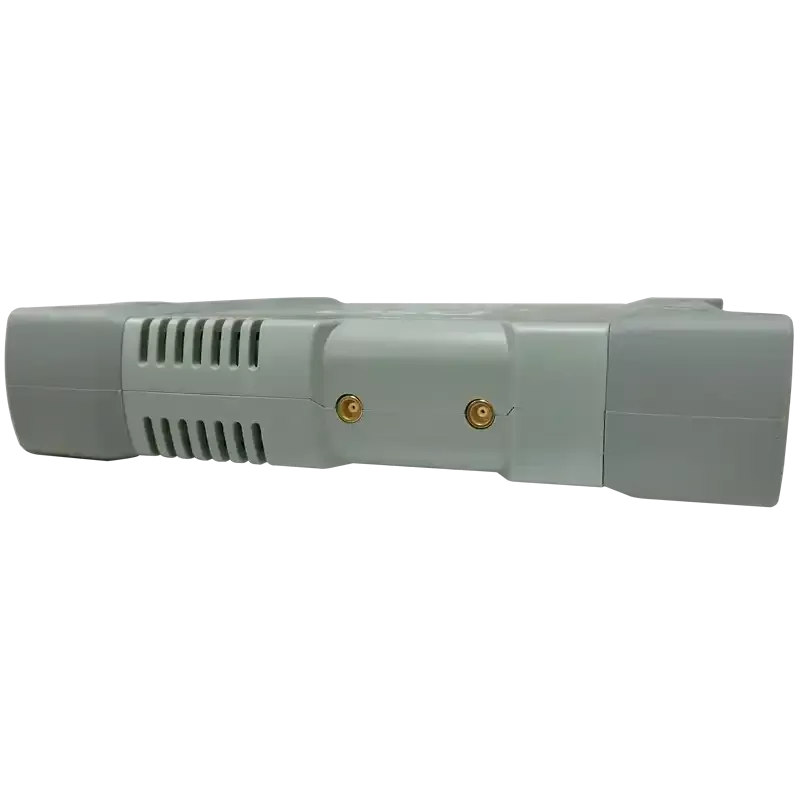

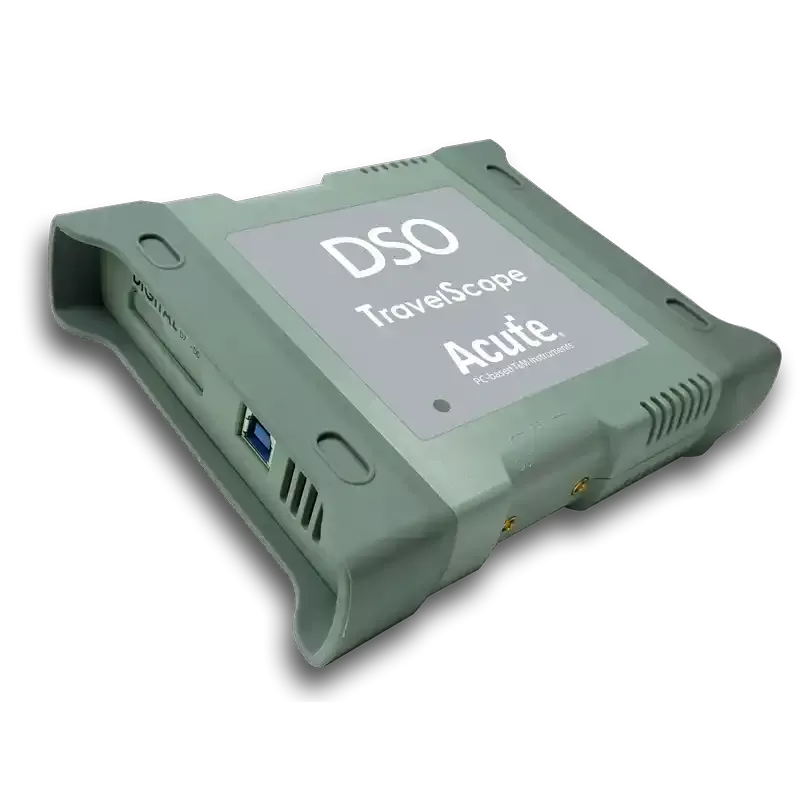

About the TS3124B
The TS3124B adds advanced oscilloscope triggers (Runt, Pattern, Timeout, Transition, Setup/Hold, B-Trigger) and Tier I protocol-aware triggering. Trigger directly on I2C addresses, SPI commands, or CAN arbitration IDs instead of searching through captures manually.
Key Highlights
- Advanced triggers: Runt, Pattern, Timeout, Transition, Setup/Hold
- Protocol-aware trigger and decode (Tier I)
- Stack with logic analyzers for mixed-signal debug
- 120+ protocol decoders included

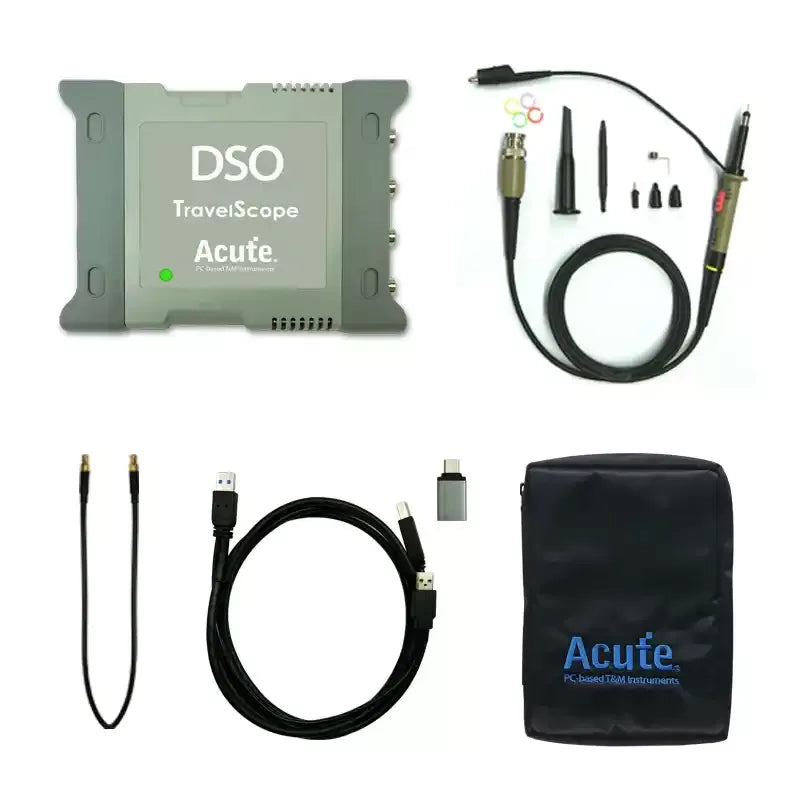

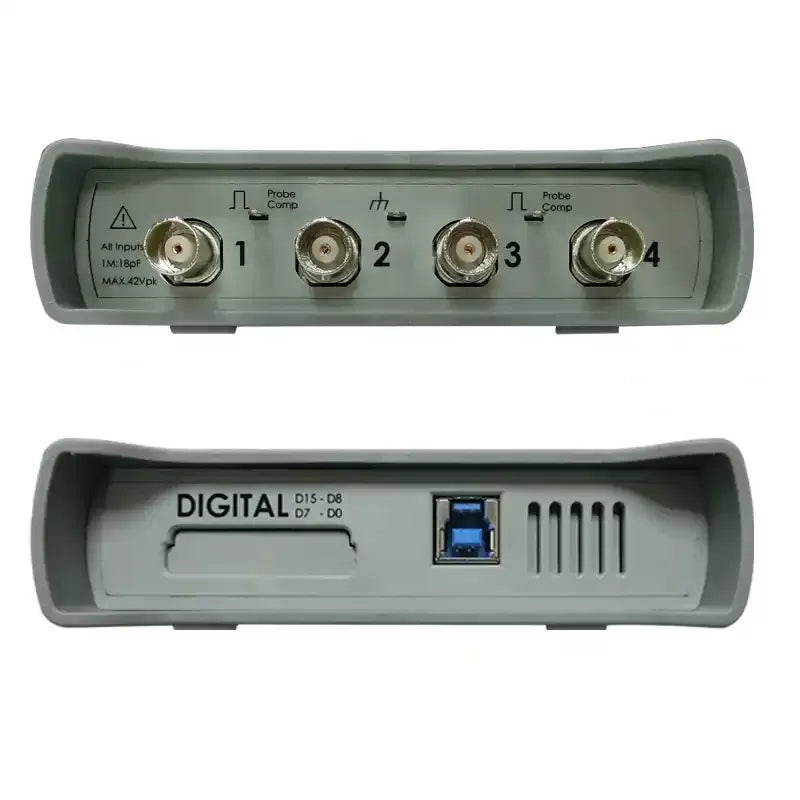

| Channels | 4 analog (8-bit) |
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Trigger | Group I + II, Protocol Tier I |
| Protocol Decode | 120+ |
| Interface | USB 3.0 |
| OS Support | Windows 10 / 11 · Linux (beta) |
Um aplicativo nativo para Linux está disponível em beta.
Baixar no GitHubSuporte de protocolos
70+ protocolos decodificados · 20+ com disparo por hardware
76 protocolos suportados·DDecodificação TDisparo EVValidação elétrica
| Protocolo | Decodificação | Disparo |
|---|---|---|
| I2C | D | T |
| MIPI I3C | D | T |
| SPI | D | T |
| UART | D | T |
Nenhum protocolo corresponde à sua pesquisa.
Compare Série TravelScope Models
See how the TS3124B compares to other models in the Série TravelScope series.
| Specification | TS3124E Discontinued | TS3124B Current | TS3124H | TS3124V |
|---|---|---|---|---|
| Analog Channels | 4 | 4 | 4 | 4 |
| Bandwidth | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Sample Rate | 1 GS/s | 1 GS/s | 1 GS/s | 1 GS/s |
| Record Length | 128 Mpts/ch | 128 Mpts/ch | 128 Mpts/ch | 128 Mpts/ch |
| Vertical Resolution | 8 bits | 8 bits | 8–16 bits | 8–16 bits |
| DSO Trigger | Group I | Group I, II | Group I, II | Group I, II |
| Protocol Trigger/Decode | — | Tier I | Tier I | Tier I, II |
| Electrical Validation | — | — | — | I2C, I3C, SPI, UART... |
| List Price | — | $1,200 | $1,800 | $2,800 |
DSO Group I: Edge, Either, External, Falling, Rising, Video, Width
DSO Group II: Runt, Pattern/State, Timeout, Transition, Setup/Hold, B-Trigger, Window
Protocol Tier I: BiSS-C, CAN 2.0B/FD, DALI, DP AUX, MIPI I3C, USB PD 3.1
Protocol Tier II: SVI3, SVID (restricted access)
Downloads
Software
Application software for TravelScope 3000 and MSO3000 series instruments. Includes DSO, logic analyzer, and protocol decode. Windows 10/11.
Linux application for the TravelScope 3000 series. Separate native Linux app — currently in beta. Download the latest release from GitHub.
SDK e API
Folhas de dados
Não tem certeza de qual instrumento e adequado para sua aplicação?
Nossa equipe de engenharia pode ajuda-lo a escolher o instrumento certo para suas necessidades de protocolo, número de canais e desempenho.
