Série TravelLogic — Logic Analyzer

TL4134B

Name: TL4134B
Brand: Acute Technology
SKU: TL4134B
Price: 2500.00 USD
Availability: InStock

SKU: TL4134B

$2,500.00 Em estoque

Qtd.:

Solicitar orçamento

34 channels with 2 GHz timing analysis

4 Gb memory depth

Tier I + II bus trigger and protocol analyzer

Cascade multiple units for 288+ channels

U.S. based engineering support

Datasheet (PDF) User Manual (PDF)

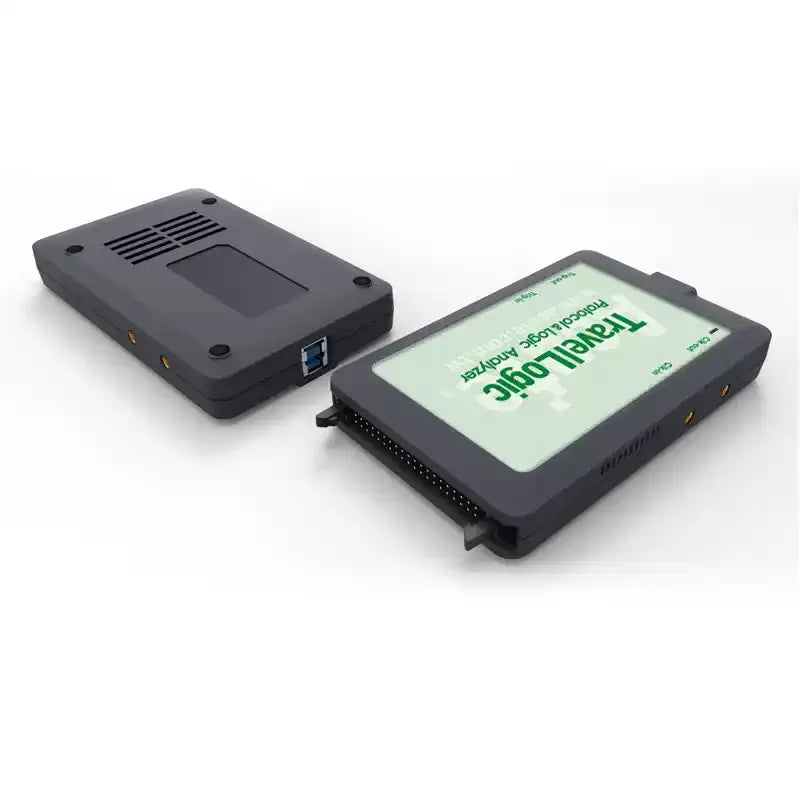

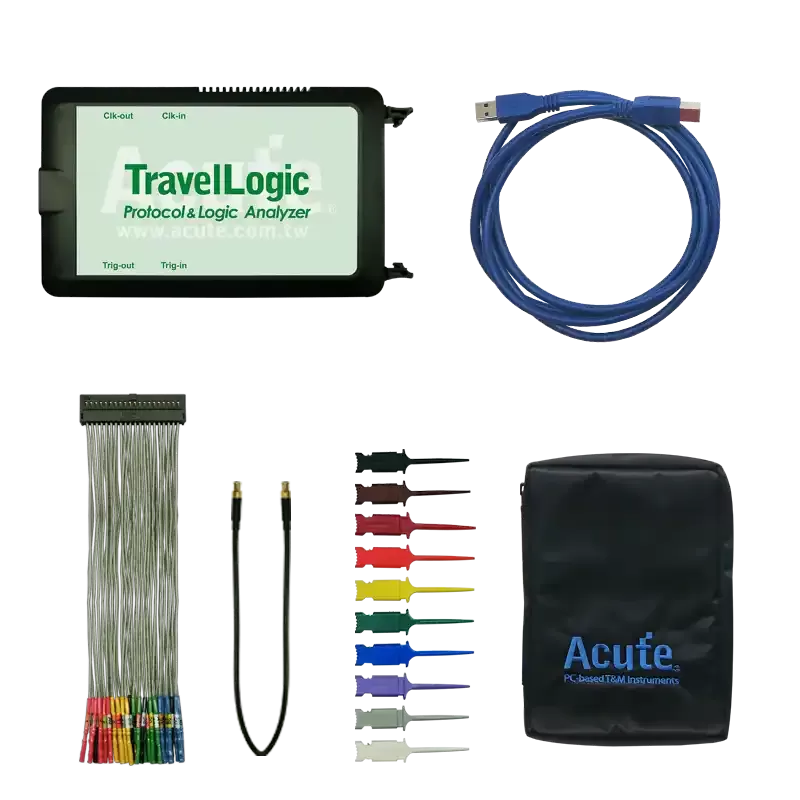

About the TL4134B

The TL4134B adds Tier II protocol triggers and analysis to the TravelLogic platform, adding support for power management buses (PMBus, SMBus, SVI2), USB 1.1, and more. Same 34-channel, 2 GHz timing performance in a portable package.

Key Highlights

Tier I + II bus trigger and protocol analyzer
Adds LPC, PMBus, SMBus, SVI2, USB 1.1 triggers
Cascade multiple units for 288+ channels

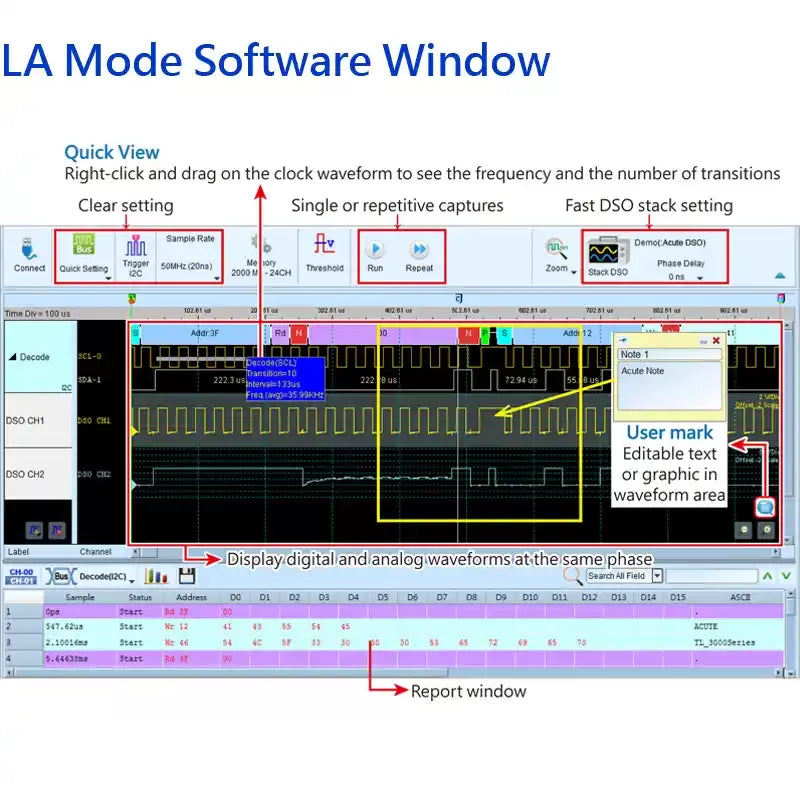

Stack with third-party oscilloscopes

Channels	34
Timing Analysis	2 GHz
State Analysis	200 MHz
Memory	4 Gb
Protocol Decode	Tier I + II (120+ total)

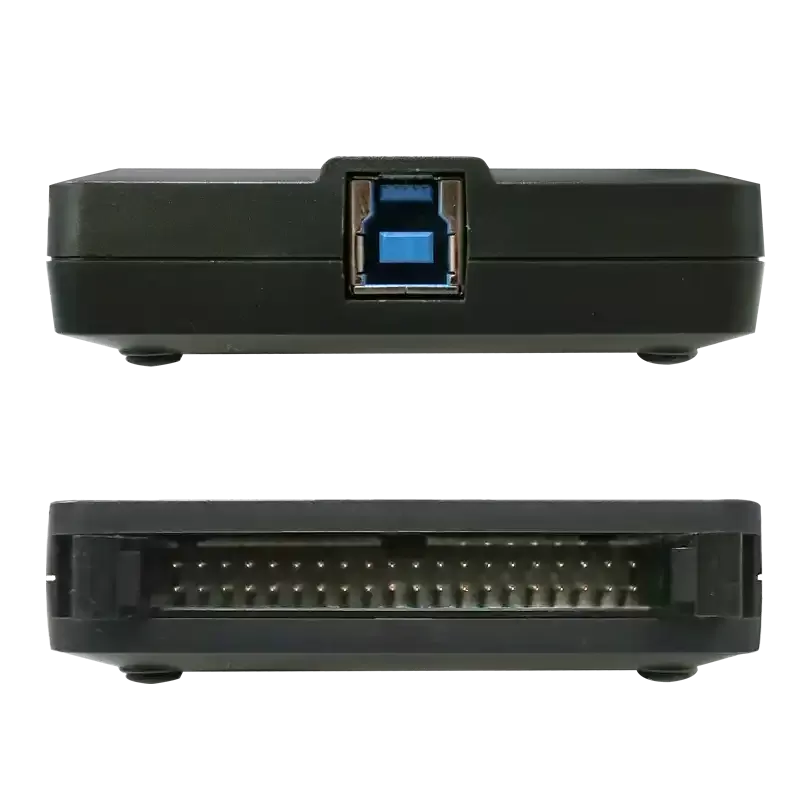

Interface	USB 3.0
OS Support	Windows 10 / 11 · Linux (beta)

Suporte para Linux disponível Beta

Um aplicativo nativo para Linux está disponível em beta.

Baixar no GitHub

Suporte de protocolos

100+ protocolos decodificados · 100+ com disparo por hardware

109 protocolos suportados·DDecodificação TDisparo EVValidação elétrica

Protocolo	Decodificação	Disparo

I2C	D	T
MIPI I3C	D	T
SPI	D	T
UART	D	T

CODEC_SSI	D	T
HD Audio	D	T
I2S	D	T
MIPI SoundWire 1.2	D	T
PCM	D	T
PDM	D	T
S/PDIF	D	T
TDM	D	T

HID over I2C	D	T
HID over SPI	D	T
LPC	D	T
LPT	D	T
M-PESTI	D	T
Math	D	T
MCTP over I2C/I3C/SMBus	D	T
PECI 3.0	D	T
PS/2	D	T
Serial IRQ	D	T
SGPIO	D	T
SMBus (SBS, SPD)	D	T
SMI	D	T
SSI	D	T

BT1120	D	T
CEC	D	T
Close Caption	D	T
DDC(EDID)	D	T
DP_Aux	D	T
ITU-R BT.656 (CCIR656)	D	T
LCD1602	D	T
Line Decoding	D	T
Line Encoding	D	T
MDDI	D	T
MHL CBUS	D	T
Mini/Micro LED	D	T
MIPI CSI LP	D	T
MIPI DSI LP	D	T
RGB Interface	D	T
ST7669	D	T

10BASE-T1S	D	T
HDLC	D	T
MDIO	D	T
OA3p(PMD)	D	T
OATC6 over SPI	D	T

MIPI RFFE 3	D	T
MIPI SPMI 2	D	T

AVSBus	D	T
PMBus	D	T
QI	D	T
SVI2	D	T
UFCS	D	T
USB PD 3.1	D	T

AccMeter	D	T
APML	D	T
BiSS-C	D	T
DALI	D	T
DMX512	D	T
HTSensor	D	T
IOLink	D	T
MBus	D	T
Microwire	D	T
Modbus	D	T
Profibus	D	T
PWM	D	—
QEI	D	T
SENT	D	T

A/D-Mux Flash	D	T
HDQ	D	T
I2C EEPROM	D	T
I80	D	T
IDE	D	T
QSPI	D	T
SDQ	D	T
SDR SDRAM	D	T
SPI-NAND	D	T
ULPI	D	T

CAN 2.0B/FD	D	T
FlexRay	D	T
J1850	D	T
LIN	D	T

1-Wire	D	T
3-Wire	D	T
7-Segment	D	T
8b10b decoding	D	T
A/D Converter	D	T
BSD	D	T
BSS	D	T
IrDA	D	T
ISELED	D	T
JTAG	D	T
JVC IR	D	T
LED_Ctrl	D	T
Lissajous	D	T
Microchip SWI	D	T
NEC IR	D	T
RC-5	D	T
RC-6	D	T
RT_SWI	D	T
Smart Card	D	T
SWD	D	T
SWIM	D	T
SWP	D	T
UNI/O	D	T
USB 1.1	D	T
USB4/TBT3 SB Channel	D	T
Wiegand	D	T

Compare Série TravelLogic Models

See how the TL4134B compares to other models in the Série TravelLogic series.

Specification	TL4134E	TL4134B Current	TL4234B
Channels	34	34	34
Timing Analysis	2 GHz	2 GHz	2 GHz
State Analysis	200 MHz	200 MHz	200 MHz
Memory	4 Gb	4 Gb	8 Gb
Bus Trigger	Tier I	Tier I, II	Tier I, II, III
Protocol Analyzer	Tier I	Tier I, II	Tier I, II, III
Interface	USB 3.0	USB 3.0	USB 3.0
List Price	$1,400	$2,500	$3,500
