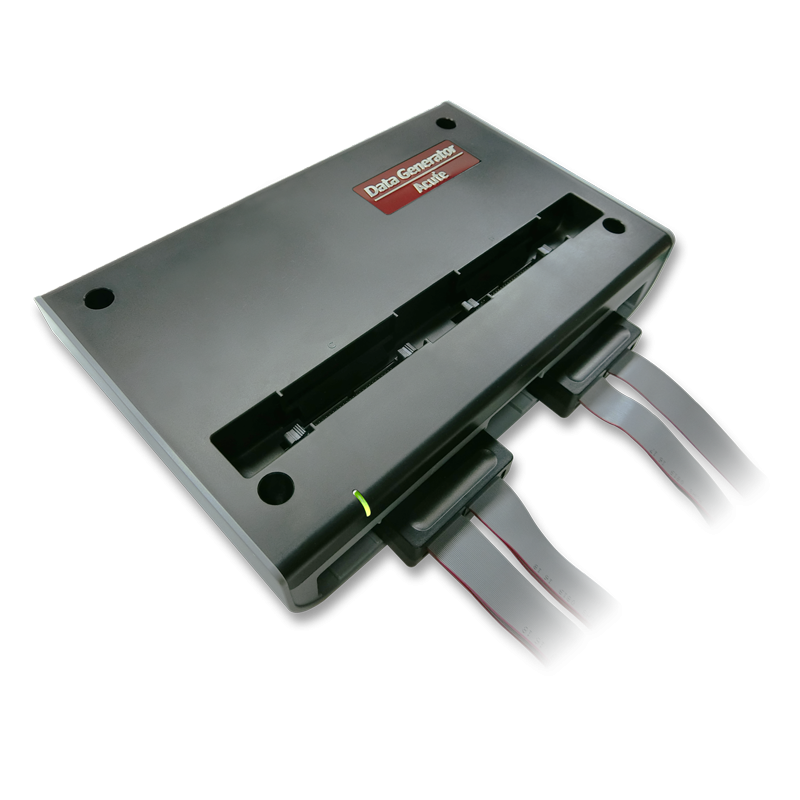

DG4000 Series
Geradores de padrões digitais de grande número de canais com 64 a 128 saidas para geração de estimulos complexos. Ideais para validação de ASIC/FPGA e testes de produção.
The DG4000 series delivers high-channel-count digital pattern generation for complex test stimulus, protocol simulation, and automated production testing. Available in 64, 96, and 128-channel configurations (with 48–112 data channels + 16 event channels) at 700 Mbps/ch, with SDK support for integration into custom test systems.
- 48–112 data + 16 event channels (64–128 total) at 700 Mbps/ch
- Protocol stimulus mode for automated testing
- SDK available for Python, LabVIEW, and C integration
Compare Models
| Specification | DG4064B | DG4096B | DG4128B |
|---|---|---|---|
| Data Channels | 48 | 80 | 112 |
| Event Channels | 16 | 16 | 16 |
| Max Data Rate | 700 Mbps/ch | 700 Mbps/ch | 700 Mbps/ch |
| Clock Range | 1 Hz – 2.4 GHz | 1 Hz – 2.4 GHz | 1 Hz – 2.4 GHz |
| Pattern Depth | 256 Mb/ch | 256 Mb/ch | 256 Mb/ch |
| Probe Output | 0.9–5.0 V | 0.9–5.0 V | 0.9–5.0 V |
| List Price | $11,000 | $12,100 | $13,800 |
Preset patterns: I2C, MIPI I3C, MIPI RFFE, PMBus, PWM, SPI
Não tem certeza de qual instrumento e adequado para sua aplicação?
Nossa equipe de engenharia pode ajuda-lo a escolher o instrumento certo para suas necessidades de protocolo, número de canais e desempenho.
FAQ
What protocols does the DG4000 Series support?
The DG4000 Series is part of the Acute instrument family which supports over 120 protocol decoders.
What operating systems does the DG4000 Series support?
All Acute instruments including the DG4000 Series support Windows 10 and Windows 11 with USB 3.0 connectivity.
Can I get a demo or evaluation unit of the DG4000 Series?
Yes. Contact our engineering team at [email protected] or call +1 (415) 409-8771 to discuss evaluation options for your application.
