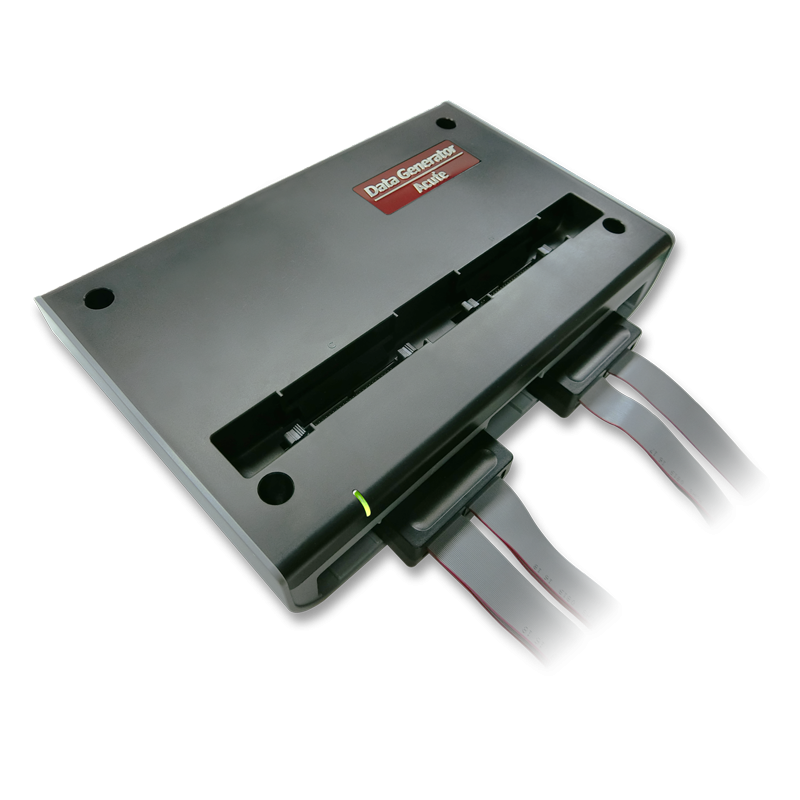

DG4000 Series
High-channel-count digital pattern generators with 64–128 output channels for complex stimulus generation. Ideal for ASIC/FPGA validation and production test.
The DG4000 series delivers high-channel-count digital pattern generation for complex test stimulus, protocol simulation, and automated production testing. Available in 64, 96, and 128-channel configurations (with 48–112 data channels + 16 event channels) at 700 Mbps/ch, with SDK support for integration into custom test systems.
- 48–112 data + 16 event channels (64–128 total) at 700 Mbps/ch
- Protocol stimulus mode for automated testing
- SDK available for Python, LabVIEW, and C integration
Compare Models
| Specification | DG4064B | DG4096B | DG4128B |
|---|---|---|---|
| Data Channels | 48 | 80 | 112 |
| Event Channels | 16 | 16 | 16 |
| Max Data Rate | 700 Mbps/ch | 700 Mbps/ch | 700 Mbps/ch |
| Clock Range | 1 Hz – 2.4 GHz | 1 Hz – 2.4 GHz | 1 Hz – 2.4 GHz |
| Pattern Depth | 256 Mb/ch | 256 Mb/ch | 256 Mb/ch |
| Probe Output | 0.9–5.0 V | 0.9–5.0 V | 0.9–5.0 V |
| List Price | $11,000 | $12,100 | $13,800 |
Preset patterns: I2C, MIPI I3C, MIPI RFFE, PMBus, PWM, SPI
Not sure which instrument is right for your application?
Our engineering team can help you match the right instrument to your specific protocol, channel count, and performance requirements.
FAQ
What protocols does the DG4000 Series support?
The DG4000 Series is part of the Acute instrument family which supports over 120 protocol decoders.
What operating systems does the DG4000 Series support?
All Acute instruments including the DG4000 Series support Windows 10 and Windows 11 with USB 3.0 connectivity.
Can I get a demo or evaluation unit of the DG4000 Series?
Yes. Contact our engineering team at [email protected] or call +1 (415) 409-8771 to discuss evaluation options for your application.
