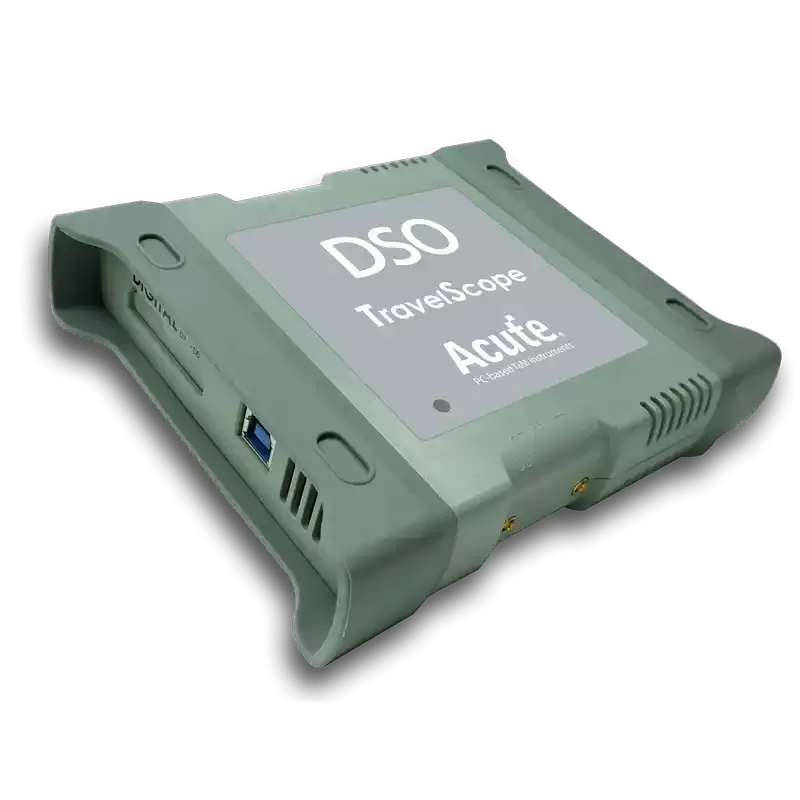

TravelScope Series — Digital Storage Oscilloscope

TS3124V

Name: TS3124V
Brand: Acute Technology
SKU: TS3124V
Price: 2800.00 USD
Availability: InStock

SKU: TS3124V

$2,800.00 In Stock

Qty:

Request Quote

4 analog channels, 12–16 bit high resolution

200 MHz bandwidth, 1 GS/s sample rate

Full trigger suite + protocol trigger Tier I + II

Electrical validation for I2C, I3C, SPI, UART

U.S. based engineering support

Datasheet (PDF) User Manual (PDF)

About the TS3124V

The TS3124V is the flagship TravelScope — 12–16 bit high-resolution analog capture with the full trigger suite, Tier I + II protocol triggers, and electrical validation for I2C, I3C, SPI, and UART. Verify signal integrity and protocol compliance in a single instrument.

Key Highlights

12–16 bit resolution + electrical validation
Tier I + II protocol triggers (adds SVI3, SVID)
Electrical validation for I2C, I3C, SPI, UART
The most capable PC-based oscilloscope in the lineup

Channels	4 analog (12–16 bit high res)
Bandwidth	200 MHz
Sample Rate	1 GS/s
Trigger	Group I + II, Protocol Tier I + II
Electrical Validation	I2C, I3C, SPI, UART
Interface	USB 3.0
OS Support	Windows 10 / 11 · Linux (beta)

Linux Support Available Beta

A native Linux application is available in beta.

Download from GitHub

Protocol Support

70+ protocols decoded · 20+ with hardware trigger · 8with electrical validation

76 supported protocols·DDecode TTrigger EVElectrical Validation

Protocol	Decode	Trigger	Electrical Validation

I2C	D	T	EV
MIPI I3C	D	T	EV
SPI	D	T	EV
UART	D	T	EV

CODEC_SSI	D	—	—
HD Audio	D	—	—
I2S	D	T	EV
MIPI SoundWire 1.2	D	—	—
PCM	D	—	—
PDM	D	—	EV
S/PDIF	D	—	—

HID over I2C	D	T	—
PECI 3.0	D	—	—
PS/2	D	—	—
Serial IRQ	D	—	—
SGPIO	D	—	—
SMBus (SBS, SPD)	D	T	—
SMI	D	—	—
SSI	D	—	—

CEC	D	—	—
Close Caption	D	—	—
DDC(EDID)	D	—	—
DP_Aux	D	T	—
MDDI	D	—	—
MHL CBUS	D	—	—
Mini/Micro LED	D	T	—
MIPI CSI LP	D	—	—
MIPI DSI LP	D	—	—
ST7669	D	—	—

HDLC	D	—	—
MDIO	D	T	—

MIPI RFFE 3	D	T	EV
MIPI SPMI 2	D	T	EV

AVSBus	D	—	—
PMBus	D	T	—
QI	D	—	—
SVI2	D	T	—
USB PD 3.1	D	T	—

AccMeter	D	—	—
APML	D	—	—
BiSS-C	D	T	—
DALI	D	T	—
DMX512	D	—	—
HTSensor	D	—	—
MBus	D	—	—
Microwire	D	—	—
Modbus	D	T	—
Profibus	D	T	—
PWM	D	—	—
QEI	D	—	—
SENT	D	T	—

HDQ	D	—	—
I2C EEPROM	D	—	—
SDQ	D	—	—

CAN 2.0B/FD	D	T	—
FlexRay	D	—	—
LIN	D	T	—

1-Wire	D	—	—
3-Wire	D	—	—
BSD	D	—	—
IrDA	D	—	—
ISELED	D	—	—
JVC IR	D	—	—
LED_Ctrl	D	—	—
Microchip SWI	D	—	—
NEC IR	D	—	—
RC-5	D	—	—
RC-6	D	—	—
RT_SWI	D	—	—
Smart Card	D	—	—
SWIM	D	—	—
SWP	D	—	—
UNI/O	D	—	—
USB 1.1	D	T	—
USB4/TBT3 SB Channel	D	—	—
Wiegand	D	—	—

Compare TravelScope Series Models

See how the TS3124V compares to other models in the TravelScope Series series.

Specification	TS3124E Discontinued	TS3124B	TS3124H	TS3124V Current
Analog Channels	4	4	4	4
Bandwidth	200 MHz	200 MHz	200 MHz	200 MHz
Sample Rate	1 GS/s	1 GS/s	1 GS/s	1 GS/s
Record Length	128 Mpts/ch	128 Mpts/ch	128 Mpts/ch	128 Mpts/ch
Vertical Resolution	8 bits	8 bits	8–16 bits	8–16 bits
DSO Trigger	Group I	Group I, II	Group I, II	Group I, II
Protocol Trigger/Decode	—	Tier I	Tier I	Tier I, II
Electrical Validation	—	—	—	I2C, I3C, SPI, UART...
List Price	—	$1,200	$1,800	$2,800

DSO Group I: Edge, Either, External, Falling, Rising, Video, Width

DSO Group II: Runt, Pattern/State, Timeout, Transition, Setup/Hold, B-Trigger, Window

Protocol Tier I: BiSS-C, CAN 2.0B/FD, DALI, DP AUX, MIPI I3C, USB PD 3.1

Protocol Tier II: SVI3, SVID (restricted access)
