TravelData Series — Waveform Generator
TD3216B
SKU: TD3216B
$3,500.00 In Stock
16 channels with 2x memory depth

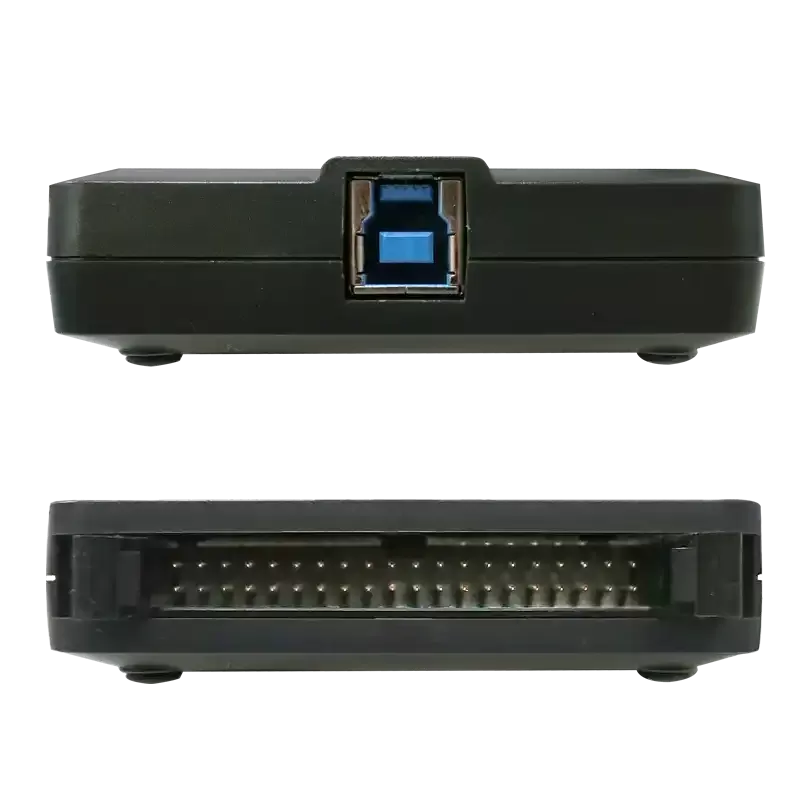

USB 3.0 interface, bus-powered portable design
Protocol stimulus for device validation
U.S. based engineering support
About the TD3216B

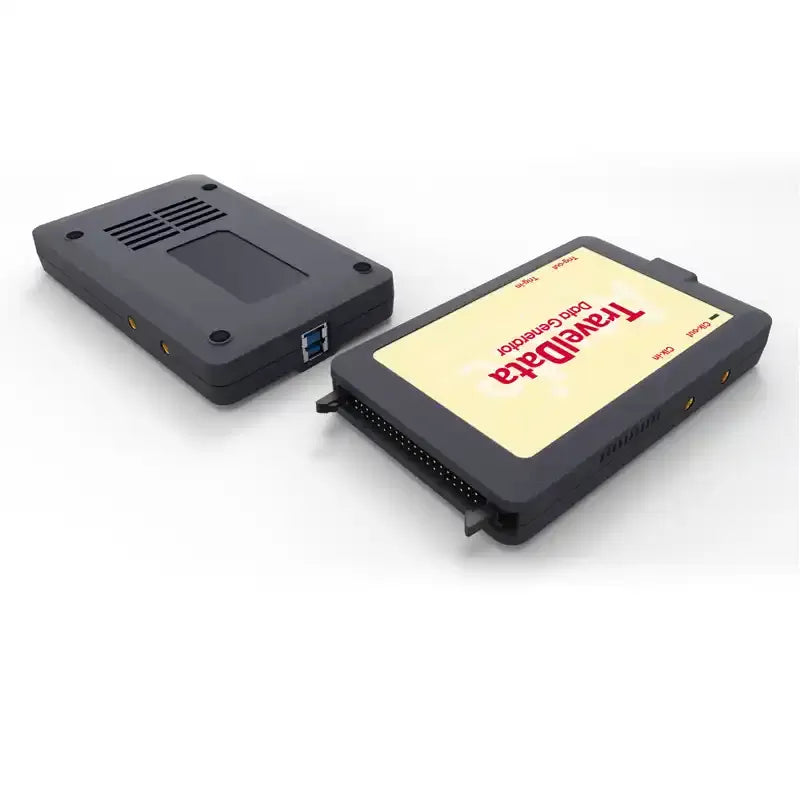

The TD3216B is the top-tier TravelData with 16 channels and double memory depth for longer and more complex pattern sequences.
Key Highlights
- 16 channels with 2x memory depth
- USB 3.0 bus-powered
- Protocol stimulus capability
| Channels | 16 |
| Memory | 2x standard depth |
| Interface | USB 3.0 (bus powered) |
Compare TravelData Series Models
See how the TD3216B compares to other models in the TravelData Series series.
| Specification | TD3008E Discontinued | TD3116B | TD3216B Current |
|---|---|---|---|
| Data Channels | 8 | 16 | 16 |
| Event Channels | 3 | 3 | 3 |
| Max Data Rate | 200 Mbps/ch | 200 Mbps/ch | 200 Mbps/ch |
| Clock Range | 1 Hz – 200 MHz | 1 Hz – 200 MHz | 1 Hz – 200 MHz |
| Pattern Depth | 512 Kb/ch | 1 Mb/ch | 256 Mb/ch |
| Data Output | 0.9–4.5 Vpp | 0.9–4.5 Vpp | 0.9–4.5 Vpp |
| List Price | — | $2,100 | $3,500 |

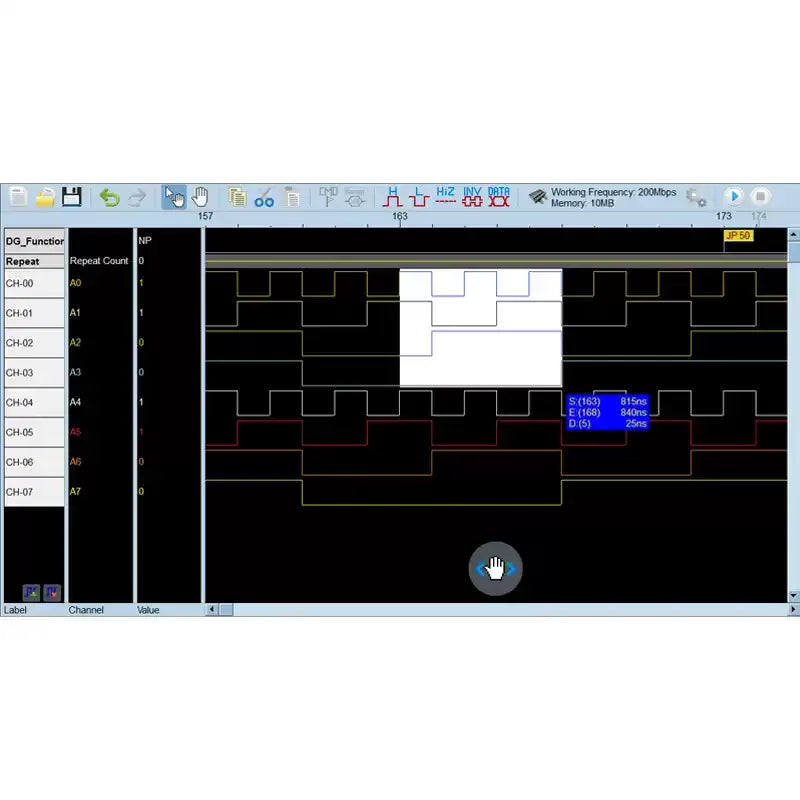

Preset patterns: I2C, MIPI I3C, MIPI RFFE, PMBus, PWM, SPI, Sync/Async Counter
