TravelData Series — Waveform Generator
TD3008E
SKU: TD3008E
— Discontinued
This product has been discontinued
We recommend the TD3116B as a replacement.
8 channels of digital pattern generation
USB 3.0 interface, bus-powered portable design
Protocol stimulus for device validation
U.S. based engineering support
About the TD3008E

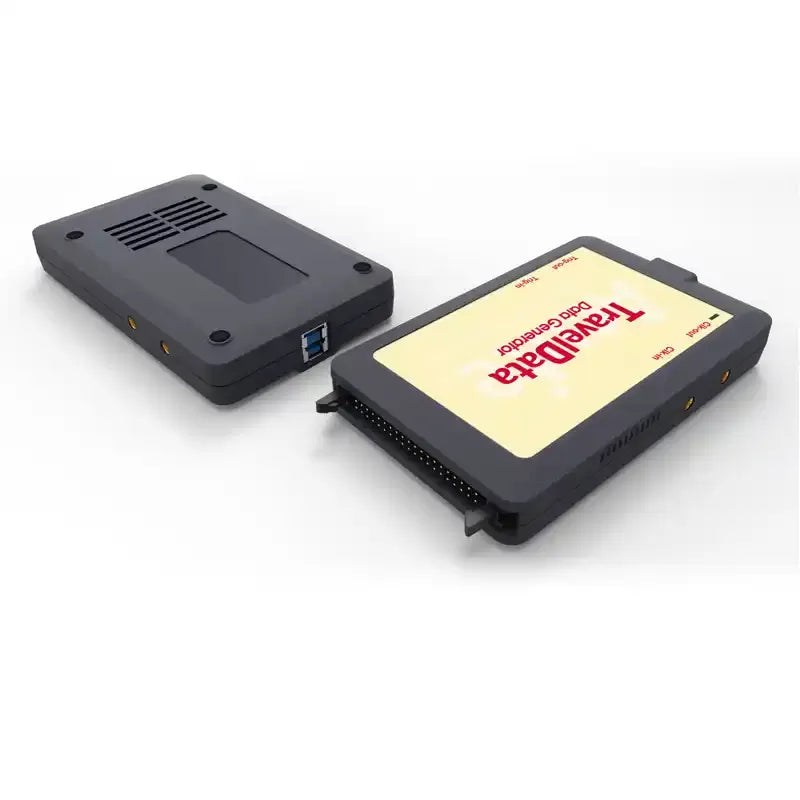

The TD3008E is a compact 8-channel digital pattern generator for basic stimulus and test signal creation. USB 3.0 bus-powered and portable.
Key Highlights
- 8 channels of pattern generation
- USB 3.0 bus-powered
- Protocol stimulus capability
| Channels | 8 |
| Interface | USB 3.0 (bus powered) |
Compare TravelData Series Models
See how the TD3008E compares to other models in the TravelData Series series.
| Specification | TD3008E Discontinued | TD3116B | TD3216B |
|---|---|---|---|
| Data Channels | 8 | 16 | 16 |
| Event Channels | 3 | 3 | 3 |
| Max Data Rate | 200 Mbps/ch | 200 Mbps/ch | 200 Mbps/ch |
| Clock Range | 1 Hz – 200 MHz | 1 Hz – 200 MHz | 1 Hz – 200 MHz |
| Pattern Depth | 512 Kb/ch | 1 Mb/ch | 256 Mb/ch |
| Data Output | 0.9–4.5 Vpp | 0.9–4.5 Vpp | 0.9–4.5 Vpp |
| List Price | — | $2,100 | $3,500 |

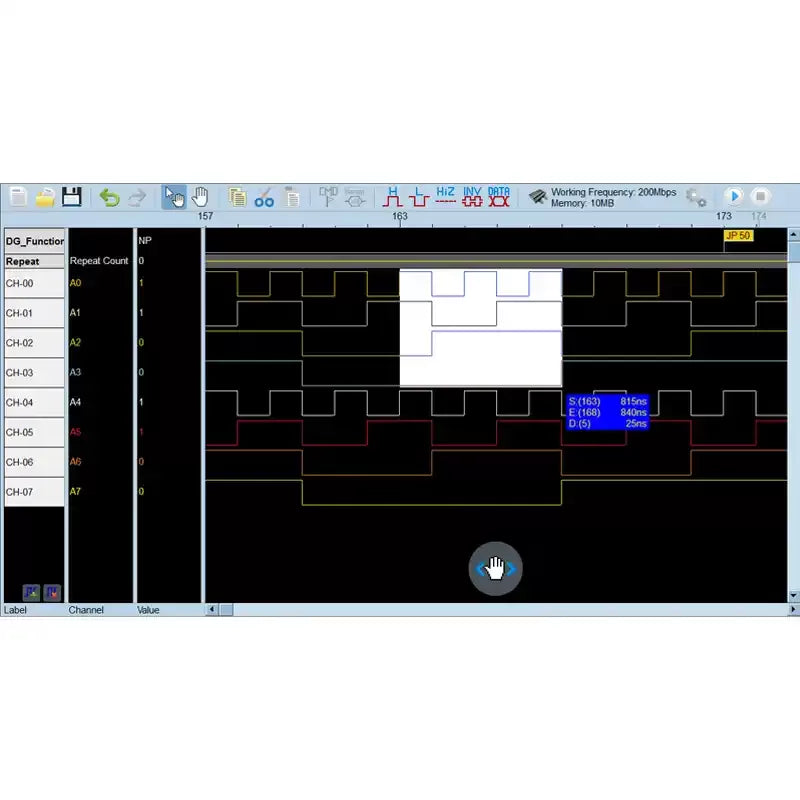

Preset patterns: I2C, MIPI I3C, MIPI RFFE, PMBus, PWM, SPI, Sync/Async Counter
Downloads
Not sure which instrument is right for your application?
Our engineering team can help you match the right instrument to your specific protocol, channel count, and performance requirements.
