MSO3124B
SKU: MSO3124B

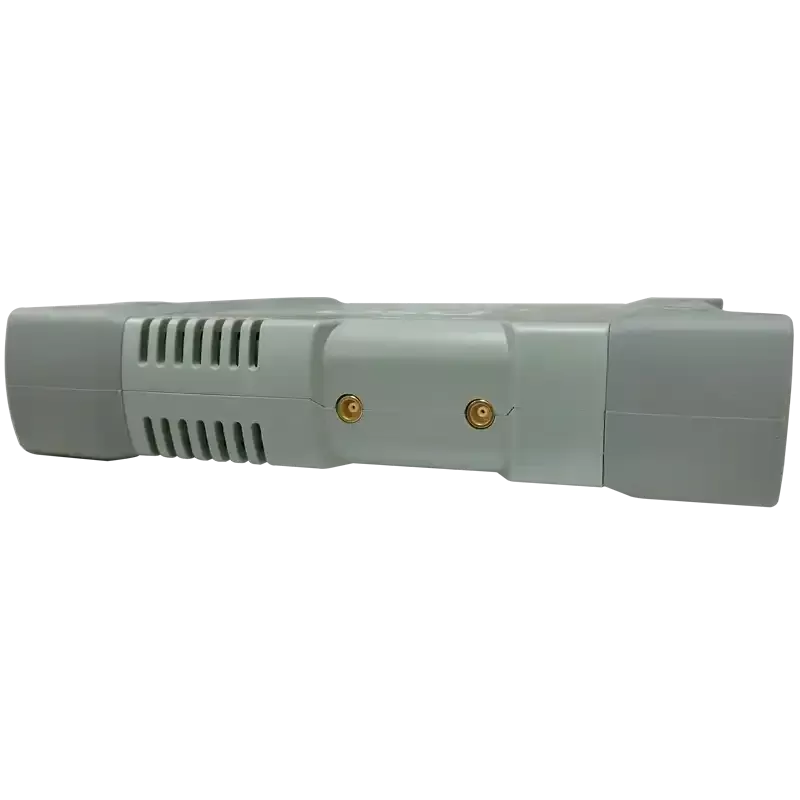

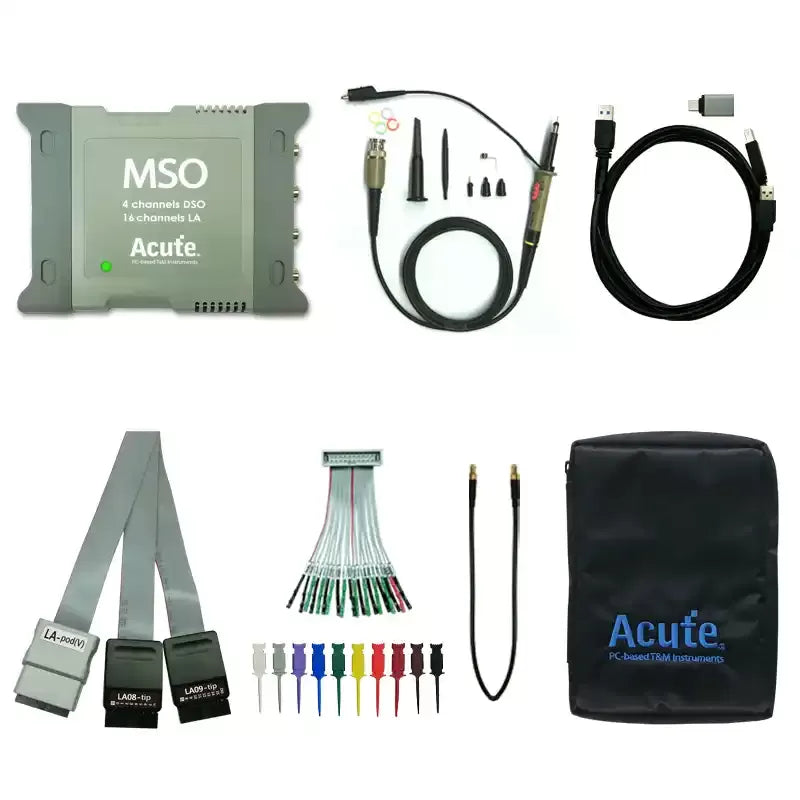

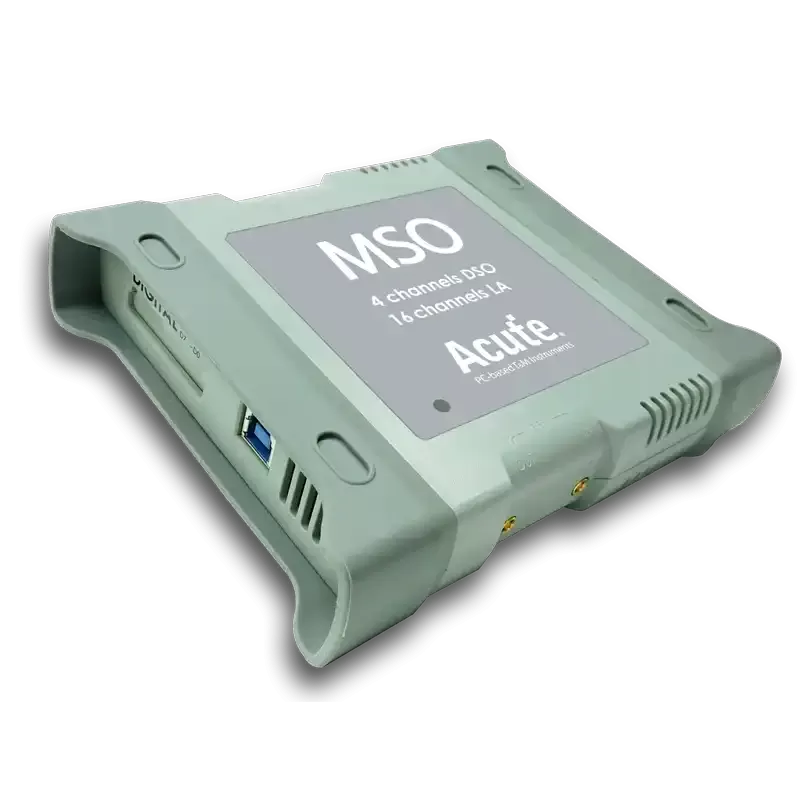

About the MSO3124B
The MSO3124B adds Group II analog triggers (Runt, Pattern, Timeout, Transition) and Bus I protocol-aware analog triggering to the MSO3000 platform. Tier I + II digital triggers expand the protocol coverage for more complex debugging scenarios.
Key Highlights
- Advanced analog triggers: Runt, Pattern/State, Timeout, Transition, Setup/Hold
- Bus I protocol-aware analog trigger
- Tier I + II digital bus triggers
- 6-in-1 instrument with 120+ protocol decoders

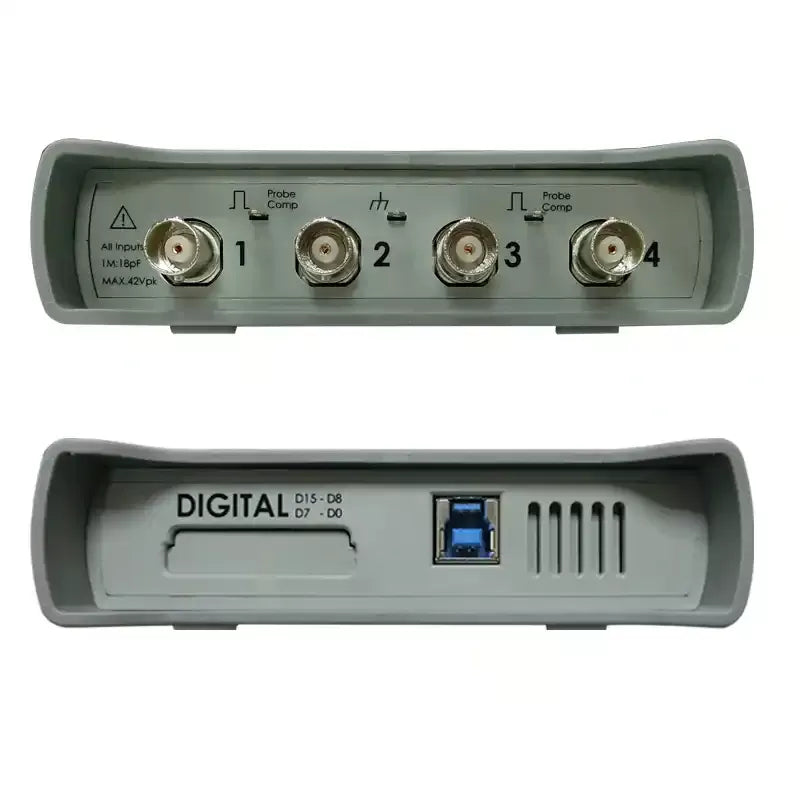

| Analog Channels | 4 (8-bit resolution) |
| Digital Channels | 16 |
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Analog Trigger | Group I + II, Bus I |
| Digital Trigger | Tier I + II |
| OS Support | Windows 10 / 11 · Linux (beta) |
Protocol Support
100+ protocols decoded · 100+ with hardware trigger
105 supported protocols·DDecode TTrigger EVElectrical Validation
| Protocol | Decode | Trigger |
|---|---|---|
| I2C | D | T |
| MIPI I3C | D | T |
| SPI | D | T |
| UART | D | T |
No protocols match your search.
Compare MSO3000 Series Models
See how the MSO3124B compares to other models in the MSO3000 Series series.
| Specification | MSO3124E Discontinued | MSO3124B Current | MSO3124H | MSO3124V |
|---|---|---|---|---|
| Analog Channels | 4 | 4 | 4 | 4 |
| Digital Channels | 16 | 16 | 16 | 16 |
| Analog Bandwidth | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Analog Sample Rate | 1 GS/s | 1 GS/s | 1 GS/s | 1 GS/s |
| Digital Timing | 2 GHz | 2 GHz | 2 GHz | 2 GHz |
| State Analysis | 250 MHz | 250 MHz | 250 MHz | 250 MHz |
| Record Length (A/D) | 128/256 Mpts | 128/256 Mpts | 128/256 Mpts | 128/256 Mpts |
| Vertical Resolution | 8 bits | 8 bits | 16 bits | 16 bits |
| Trigger (Analog/Digital) | I / I | I, II, Bus I / I, II | I, II, Bus I / I, II, III | I, II, Bus I, II / I, II, III |
| Electrical Validation | — | — | — | I2C, I3C, SPI, UART... |
| List Price | — | $3,100 | $3,800 | $4,500 |
