MSO2000 Series — Mixed-Signal Oscilloscope

MSO2008E — Mixed-Signal Logic Analyzer

Name: MSO2008E
Brand: Acute Technology
SKU: MSO2008E
Price: 660.00 USD
Availability: OutOfStock

SKU: MSO2008E

— Discontinued

This product has been discontinued

We recommend the MSO2116E as a replacement.

View MSO2116E →

8 digital channels + simple DSO

2 GHz timing analysis, 2 Gb memory

8-channel power sequence validation

Tier I bus trigger

U.S. based engineering support

Datasheet (PDF) User Manual (PDF)

About the MSO2008E

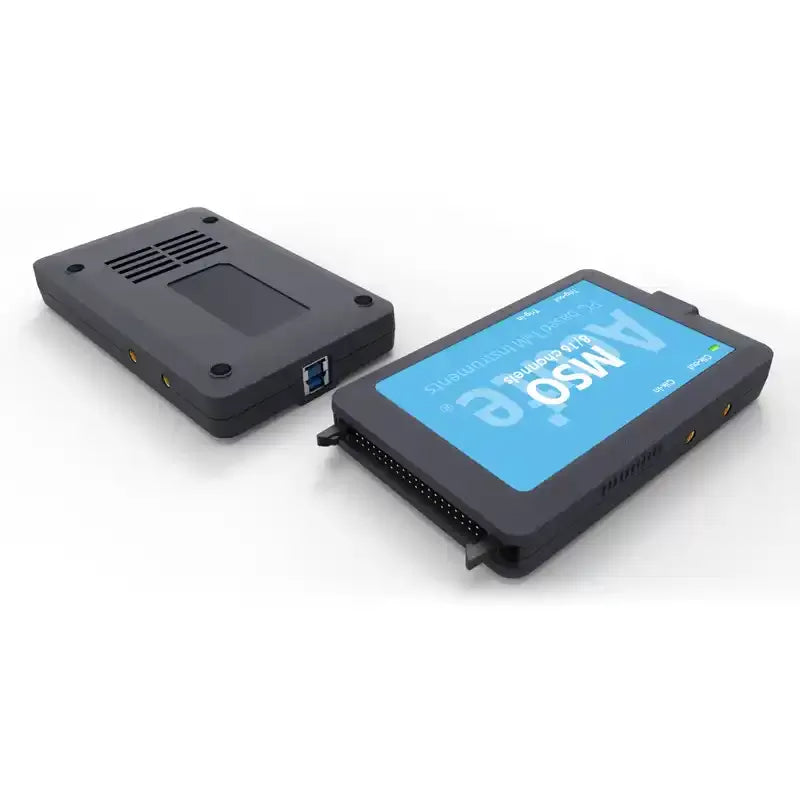

The MSO2008E is an 8-channel mixed-signal logic analyzer with a simple DSO, providing 2 GHz timing analysis and 2 Gb memory. It includes 8-channel power sequence validation and Tier I bus triggers for basic embedded debugging.

Key Highlights

8 digital channels + simple oscilloscope
8-channel power sequence validation
100+ protocol decoders

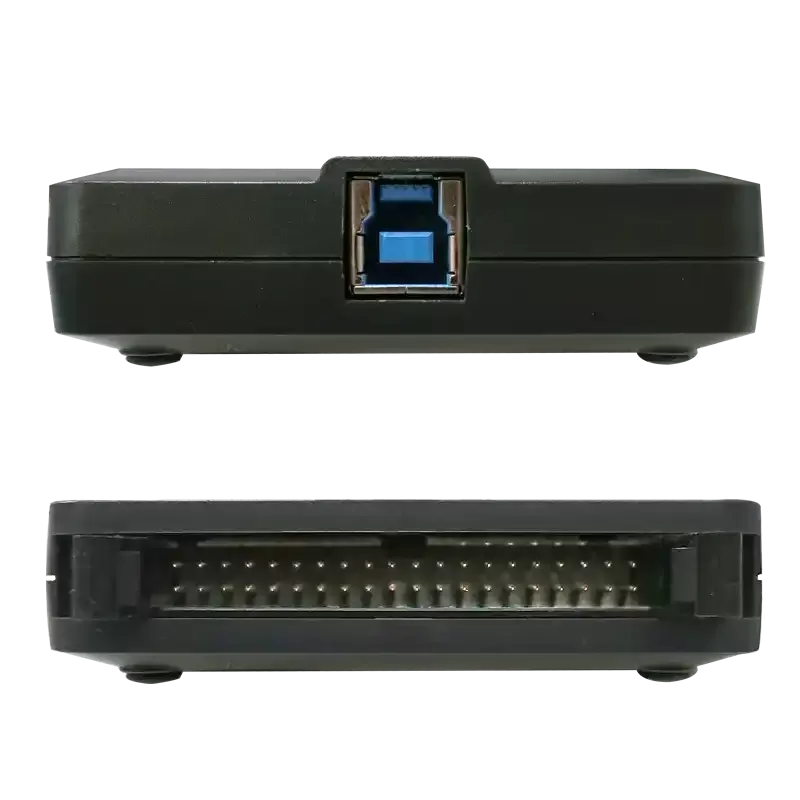

Compact USB 3.0 form factor

Digital Channels	8
Analog Channels	2
Analog Bandwidth	40 MHz
Timing Analysis	2 GHz
Memory	2 Gb
Power Seq. Channels	8
Bus Trigger	Tier I
Interface	USB 3.0

Protocol Support

70+ protocols decoded · 70+ with hardware trigger

77 supported protocols·DDecode TTrigger EVElectrical Validation

Protocol	Decode	Trigger

CODEC_SSI	D	T
HD Audio	D	T
MIPI SoundWire 1.2	D	T
PCM	D	T
PDM	D	T
S/PDIF	D	T
TDM	D	T

HID over SPI	D	T
LPT	D	T
M-PESTI	D	T
Math	D	T
MCTP over I2C/I3C/SMBus	D	T
PECI 3.0	D	T
PS/2	D	T
Serial IRQ	D	T
SGPIO	D	T
SMI	D	T
SSI	D	T

BT1120	D	T
CEC	D	T
Close Caption	D	T
DDC(EDID)	D	T
ITU-R BT.656 (CCIR656)	D	T
LCD1602	D	T
Line Decoding	D	T
Line Encoding	D	T
MDDI	D	T
MHL CBUS	D	T
MIPI CSI LP	D	T
MIPI DSI LP	D	T
ST7669	D	T

HDLC	D	T
OA3p(PMD)	D	T
OATC6 over SPI	D	T

AVSBus	D	T
QI	D	T
UFCS	D	T

AccMeter	D	T
APML	D	T
DMX512	D	T
HTSensor	D	T
IOLink	D	T
MBus	D	T
Microwire	D	T
QEI	D	T

HDQ	D	T
I2C EEPROM	D	T
QSPI	D	T
SDQ	D	T
SPI-NAND	D	T
ULPI	D	T

FlexRay	D	T
J1850	D	T

1-Wire	D	T
3-Wire	D	T
7-Segment	D	T
8b10b decoding	D	T
A/D Converter	D	T
BSD	D	T
BSS	D	T
IrDA	D	T
ISELED	D	T
JTAG	D	T
JVC IR	D	T
Lissajous	D	T
Microchip SWI	D	T
NEC IR	D	T
RC-5	D	T
RC-6	D	T
RT_SWI	D	T
Smart Card	D	T
SWD	D	T
SWIM	D	T
SWP	D	T
UNI/O	D	T
USB4/TBT3 SB Channel	D	T
Wiegand	D	T

Compare MSO2000 Series Models

See how the MSO2008E compares to other models in the MSO2000 Series series.

Specification	MSO2008E Discontinued	MSO2116E	MSO2116B	MSO2216B
Digital Channels	8	16	16	16
Analog Channels	2	2	2	2
Digital Timing	2 GHz	2 GHz	2 GHz	2 GHz
State Analysis	200 MHz	200 MHz	200 MHz	200 MHz
Analog Bandwidth	40 MHz	40 MHz	40 MHz	40 MHz
Memory	2 Gb	4 Gb	4 Gb	8 Gb
Bus Trigger	Tier I	Tier I, II	Tier I, II, III	Tier I, II, III, IV
Protocol Analyzer	Tier I	Tier I, II	Tier I, II, III	Tier I, II, III, IV
List Price	—	$1,400	$3,400	$3,500

View all MSO2000 Series models →
