MSO3000 Series

Q: Can I get a demo or evaluation unit of the MSO3000 Series?

Yes. Contact our engineering team at support@acutena.com or call +1 (415) 409-8771 to discuss evaluation options for your application.

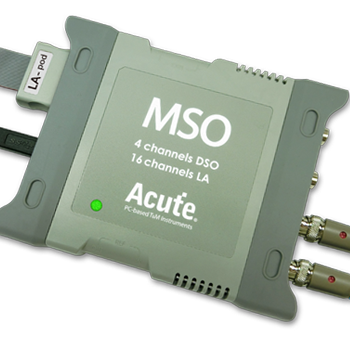

Advanced mixed-signal oscilloscopes combining 4-channel DSO with 16-channel logic analyzer. Up to 200 MHz bandwidth, 1 GS/s sample rate, and comprehensive protocol decode — the most capable combined instrument.

The MSO3000 is a 6-in-1 instrument: oscilloscope, logic analyzer, protocol analyzer, DVM, data logger, and frequency counter — all through a single USB 3.0 connection. Four analog channels at 200 MHz bandwidth and 1 GS/s sample rate combine with 16 digital channels and 120+ protocol decoders. The MSO3124V flagship adds 16-bit high-resolution mode and electrical validation for I2C, I3C, SPI, and UART.

4 analog + 16 digital channels in one instrument
200 MHz bandwidth, 1 GS/s, up to 256 Mpts memory
MSO3124H/V: 16-bit high-resolution analog capture
Windows 10/11 + native Linux app (beta)

Choose Your Model

MSO3124E

SKU: MSO3124E

—

Discontinued

MSO3124B

SKU: MSO3124B

$3,100.00

In Stock

MSO3124H

SKU: MSO3124H

$3,800.00

In Stock

MSO3124V

SKU: MSO3124V

$4,500.00

In Stock

Compare Models

Specification	MSO3124E Discontinued	MSO3124B	MSO3124H	MSO3124V
Analog Channels	4	4	4	4
Digital Channels	16	16	16	16
Analog Bandwidth	200 MHz	200 MHz	200 MHz	200 MHz
Analog Sample Rate	1 GS/s	1 GS/s	1 GS/s	1 GS/s
Digital Timing	2 GHz	2 GHz	2 GHz	2 GHz
State Analysis	250 MHz	250 MHz	250 MHz	250 MHz
Record Length (A/D)	128/256 Mpts	128/256 Mpts	128/256 Mpts	128/256 Mpts
Vertical Resolution	8 bits	8 bits	16 bits	16 bits
Trigger (Analog/Digital)	I / I	I, II, Bus I / I, II	I, II, Bus I / I, II, III	I, II, Bus I, II / I, II, III
Electrical Validation	—	—	—	I2C, I3C, SPI, UART...
List Price	—	$3,100	$3,800	$4,500

Protocol Support Matrix

Compare protocol decode, hardware trigger, and electrical validation support across the models in this series.

116 supported protocols·DDecode TTrigger EVElectrical Validation

Protocol	MSO3124EDiscontinued	MSO3124B	MSO3124H	MSO3124V

I2C	DT	DT	DT	DTEV
MIPI I3C	DT	DT	DT	DTEV
SPI	DT	DT	DT	DTEV
UART	DT	DT	DT	DTEV

CODEC_SSI	DT	DT	DT	DT
HD Audio	DT	DT	DT	DT
I2S	DT	DT	DT	DTEV
MIPI SoundWire 1.2	DT	DT	DT	DT
PDM	DT	DT	DT	DTEV
S/PDIF	DT	DT	DT	DT
TDM	DT	DT	DT	DT

eSPI	—	—	DT	DT
HID over I2C	DT	DT	DT	DT
HID over SPI	DT	DT	DT	DT
LPC	—	DT	DT	DT
LPT	DT	DT	DT	DT
M-PESTI	DT	DT	DT	DT
Math	DT	DT	DT	DT
MCTP over I2C/I3C/SMBus	DT	DT	DT	DT
PECI 3.0	DT	DT	DT	DT
PS/2	DT	DT	DT	DT
Serial IRQ	DT	DT	DT	DT
SGPIO	DT	DT	DT	DT
SMBus (SBS, SPD)	—	DT	DT	DT
SMI	DT	DT	DT	DT
SSI	DT	DT	DT	DT

BT1120	DT	DT	DT	DT
CEC	DT	DT	DT	DT
Close Caption	DT	DT	DT	DT
DDC(EDID)	DT	DT	DT	DT
DP_Aux	DT	DT	DT	DT
ITU-R BT.656 (CCIR656)	DT	DT	DT	DT
LCD1602	DT	DT	DT	DT
Line Decoding	DT	DT	DT	DT
Line Encoding	DT	DT	DT	DT
MDDI	DT	DT	DT	DT
MHL CBUS	DT	DT	DT	DT
Mini/Micro LED	—	DT	DT	DT
MIPI CSI LP	DT	DT	DT	DT
MIPI DSI LP	DT	DT	DT	DT
RGB Interface	DT	DT	DT	DT
ST7669	DT	DT	DT	DT

10BASE-T1S	DT	DT	DT	DT
HDLC	DT	DT	DT	DT
MDIO	—	DT	DT	DT
MII	—	—	DT	DT
OA3p(PMD)	DT	DT	DT	DT
OATC6 over SPI	DT	DT	DT	DT
RGMII	—	—	DT	DT
RMII	—	—	DT	DT

MIPI RFFE 3	—	DT	DT	DTEV
MIPI SPMI 2	—	DT	DT	DTEV

AVSBus	DT	DT	DT	DT
PMBus	—	DT	DT	DT
QI	DT	DT	DT	DT
SVI2	—	DT	DT	DT
SVI3	—	—	DT	DT
SVID	—	—	DT	DT
UFCS	DT	DT	DT	DT
USB PD 3.1	DT	DT	DT	DT

AccMeter	DT	DT	DT	DT
APML	DT	DT	DT	DT
BiSS-C	DT	DT	DT	DT
DALI	—	DT	DT	DT
DMX512	DT	DT	DT	DT
HTSensor	DT	DT	DT	DT
IOLink	DT	DT	DT	DT
MBus	DT	DT	DT	DT
Microwire	DT	DT	DT	DT
Modbus	—	DT	DT	DT
Profibus	—	DT	DT	DT
PWM	—	—	D	D
QEI	DT	DT	DT	DT
SENT	DT	DT	DT	DT

eMMC 4.5/MMC	—	—	DT	DT
HDQ	DT	DT	DT	DT
I2C EEPROM	DT	DT	DT	DT
I80	DT	DT	DT	DT
IDE	DT	DT	DT	DT
NAND Flash	—	—	DT	DT
QSPI	DT	DT	DT	DT
SD 2.0 (SDIO 2.0)	—	—	DT	DT
SDQ	DT	DT	DT	DT
Serial Flash	—	—	DT	DT
SPI-NAND	DT	DT	DT	DT
ULPI	DT	DT	DT	DT

CAN 2.0B/FD	DT	DT	DT	DT
FlexRay	DT	DT	DT	DT
J1850	DT	DT	DT	DT
LIN	DT	DT	DT	DT

1-Wire	DT	DT	DT	DT
3-Wire	DT	DT	DT	DT
7-Segment	DT	DT	DT	DT
8b10b decoding	DT	DT	DT	DT
A/D Converter	DT	DT	DT	DT
BSD	DT	DT	DT	DT
BSS	DT	DT	DT	DT
IrDA	DT	DT	DT	DT
ISELED	DT	DT	DT	DT
JTAG	DT	DT	DT	DT
JVC IR	DT	DT	DT	DT
LED_Ctrl	DT	DT	DT	DT
Lissajous	DT	DT	DT	DT
Microchip SWI	DT	DT	DT	DT
NEC IR	DT	DT	DT	DT
RC-5	DT	DT	DT	DT
RC-6	DT	DT	DT	DT
RT_SWI	DT	DT	DT	DT
Smart Card	DT	DT	DT	DT
SWD	DT	DT	DT	DT
SWIM	DT	DT	DT	DT
SWP	DT	DT	DT	DT
UNI/O	DT	DT	DT	DT
USB 1.1	—	DT	DT	DT
USB4/TBT3 SB Channel	DT	DT	DT	DT
Wiegand	DT	DT	DT	DT

Key Capabilities

Device Cascading

Cascade up to 16 Acute instruments for 64+ synchronized channels of logic analysis — scale your channel count to match your design complexity.

Third-Party DSO Stacking

Stack Acute logic analyzers with popular third-party oscilloscopes for time-correlated analog and digital capture in a single view.

Streaming Mode

Capture continuous protocol data to your PC's storage — monitor buses for hours or days without missing a transaction.

Power Sequence Validation

Validate power-up and power-down rail sequencing across 16 to 128 channels simultaneously — critical for multi-rail FPGA and SoC designs.

Supported Protocols

I2C SPI UART USB PD MIPI I3C I2S SMBus PDM SVI3 Power Sequence PWM

View Full Protocol Matrix →

Compare

MSO3000 vs PicoScope 3000D MSO Why Choose Acute →

Not sure which instrument is right for your application?

Our engineering team can help you match the right instrument to your specific protocol, channel count, and performance requirements.

Talk to an Engineer

FAQ

What protocols does the MSO3000 Series support?

The MSO3000 Series supports I2C, SPI, UART, USB PD, MIPI I3C, I2S, SMBus, PDM, SVI3, Power Sequence, PWM, and more — over 120 protocol decoders are available across the Acute instrument platform.

What operating systems does the MSO3000 Series support?

The MSO3000 Series supports Windows 10 and Windows 11 with the main application software, and Linux with a dedicated beta application (available on GitHub). USB 3.0 connectivity.

Can I get a demo or evaluation unit of the MSO3000 Series?

Yes. Contact our engineering team at [email protected] or call +1 (415) 409-8771 to discuss evaluation options for your application.

Downloads

Software

TravelScope / MSO3000 Softwareexe1.9.42

Application software for TravelScope 3000 and MSO3000 series instruments. Includes DSO, logic analyzer, and protocol decode. Windows 10/11.

MSO3000 Linux Software (Beta)appBeta

Linux application for the MSO3000 series. Separate native Linux app (not a Windows port) — currently in beta. Download the latest release from GitHub.

Drivers

USB 3.0 Device Driverzip

USB 3.0 driver required for all USB 3.0-connected Acute instruments. Windows 7/8/10/11.

SDK & API

AqLAVISA SDK (Logic Analyzer)zip

VISA-compatible SDK for integrating Acute logic analyzers into automated test environments. Supports gRPC, C, C#, and Python.

AqVISA SDK (DSO)zip

VISA-compatible SDK for TravelScope and MSO3000 oscilloscope mode. C and LabVIEW samples.

TS3000/MSO3000 DSO SDKzip

Direct SDK for TravelScope and MSO3000 DSO mode. Available in C, C#, Python, and LabVIEW.

Protocol Decode Open Interface SDKzip

SDK for creating custom protocol decoders using the Acute decode open interface.

Datasheets

MSO3000 Series Datasheetpdf

Complete specifications for MSO3124E, MSO3124B, MSO3124H, and MSO3124V mixed-signal oscilloscopes.

User Manuals

TravelScope / MSO3000 DSO Mode Manualpdf

User manual for oscilloscope mode on TravelScope 3000 and MSO3000 series.

MSO3000 Logic Analyzer Mode Manualpdf

User manual for logic analyzer mode on the MSO3000 series.

Protocol Decode & Trigger Manualpdf

Comprehensive reference for all 120+ protocol decoders and protocol-based triggers across all Acute instruments.
