LA4000 Series

Q: Can I get a demo or evaluation unit of the LA4000 Series?

Yes. Contact our engineering team at support@acutena.com or call +1 (415) 409-8771 to discuss evaluation options for your application.

High-performance 68–136 channel logic analyzers with 4 GHz timing, 400 MHz state analysis, and 32 Gb memory. Supports multi-unit cascading and optional LVDS differential input.

The LA4000 series is built for high-channel-count applications — IC validation, FPGA I/O testing, and multi-bus system debug. Available in 68 and 136-channel configurations with 4 GHz timing analysis and 32 Gb memory. Tier I and Tier II models offer progressively deeper protocol trigger support for storage, computing, and power interfaces.

68 or 136 channels per unit with 4 GHz timing
Multi-unit cascading for expanded channel count
Optional LVDS input pod for high-speed differential signals
Windows 10/11 + native Linux app (beta)

Choose Your Model

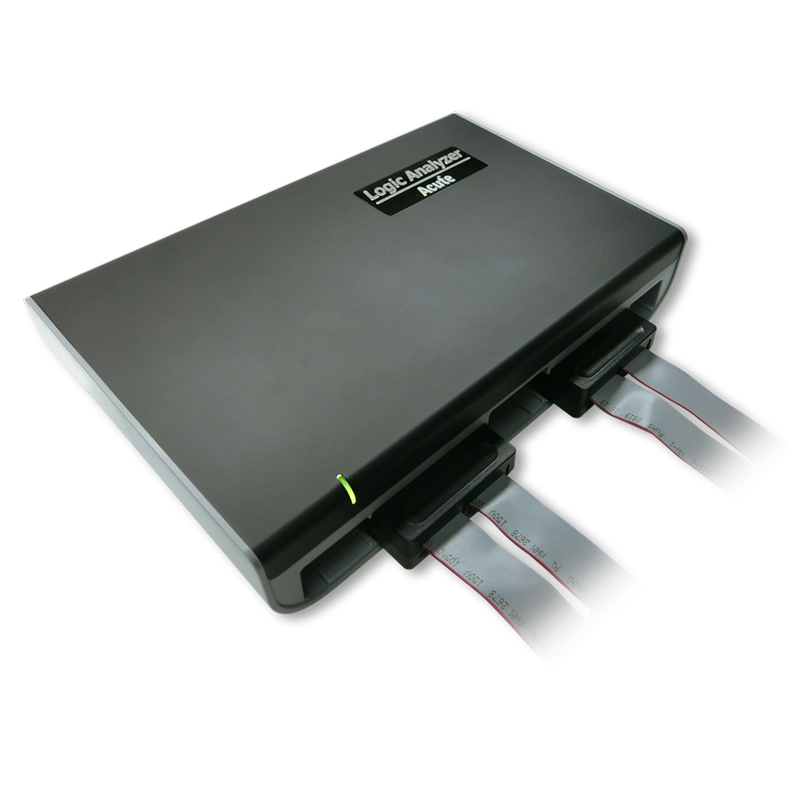

LA4068E

SKU: LA4068E

$8,700.00

In Stock

LA4068B

SKU: LA4068B

$11,000.00

In Stock

LA4136E

SKU: LA4136E

$12,100.00

In Stock

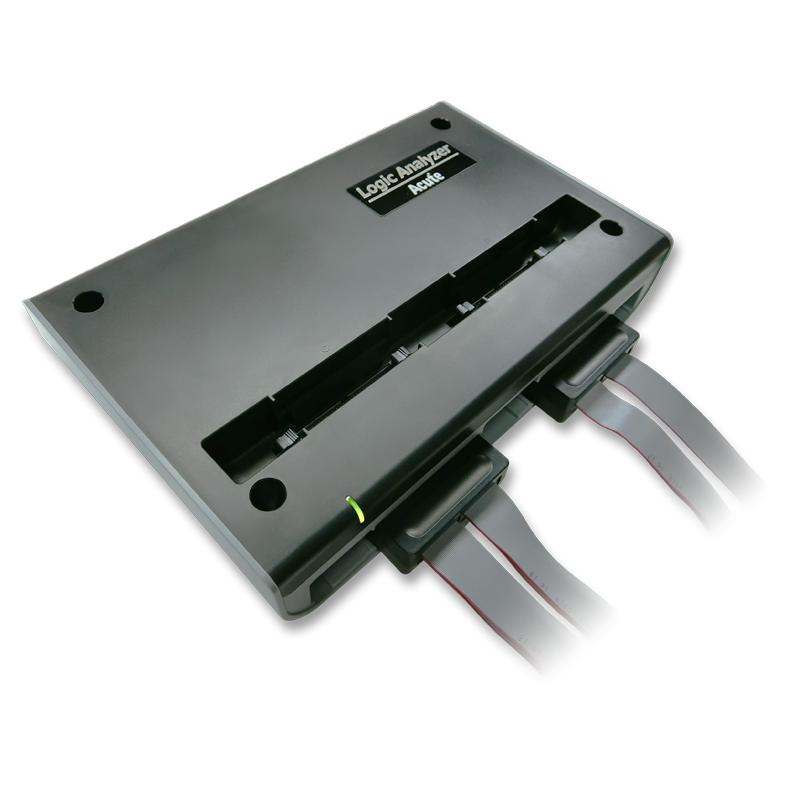

LA4136B

SKU: LA4136B

$13,800.00

In Stock

Compare Models

Specification	LA4068E	LA4068B	LA4136E	LA4136B
Channels	68	68	136	136
Timing Analysis	4 GHz	4 GHz	4 GHz	4 GHz
State Analysis	400 MHz	400 MHz	400 MHz	400 MHz
Memory	32 Gb	32 Gb	32 Gb	32 Gb
Bus Trigger	Tier I	Tier I, II	Tier I	Tier I, II
Protocol Analyzer	Tier I	Tier I, II	Tier I	Tier I, II
Cascading	Yes	Yes	Yes	Yes
List Price	$8,700	$11,000	$12,100	$13,800

Protocol Support Matrix

Compare protocol decode, hardware trigger, and electrical validation support across the models in this series.

120 supported protocols·DDecode TTrigger EVElectrical Validation

Protocol	LA4068E	LA4068B	LA4136E	LA4136B

I2C	DT	DT	DT	DT
MIPI I3C	DT	DT	DT	DT
SPI	DT	DT	DT	DT
UART	DT	DT	DT	DT

CODEC_SSI	DT	DT	DT	DT
HD Audio	DT	DT	DT	DT
I2S	DT	DT	DT	DT
MIPI SoundWire 1.2	DT	DT	DT	DT
PCM	DT	DT	DT	DT
PDM	DT	DT	DT	DT
S/PDIF	DT	DT	DT	DT
TDM	DT	DT	DT	DT

eSPI	—	DT	—	DT
HID over I2C	DT	DT	DT	DT
HID over SPI	DT	DT	DT	DT
LPC	—	DT	—	DT
LPT	DT	DT	DT	DT
M-PESTI	DT	DT	DT	DT
Math	DT	DT	DT	DT
MCTP over I2C/I3C/SMBus	DT	DT	DT	DT
PECI 3.0	DT	DT	DT	DT
PS/2	DT	DT	DT	DT
Serial IRQ	DT	DT	DT	DT
SGPIO	DT	DT	DT	DT
SMBus (SBS, SPD)	—	DT	—	DT
SMI	DT	DT	DT	DT
SSI	DT	DT	DT	DT

BT1120	DT	DT	DT	DT
CEC	DT	DT	DT	DT
Close Caption	DT	DT	DT	DT
DDC(EDID)	DT	DT	DT	DT
DP_Aux	D	DT	D	DT
ITU-R BT.656 (CCIR656)	DT	DT	DT	DT
LCD1602	DT	DT	DT	DT
Line Decoding	DT	DT	DT	DT
Line Encoding	DT	DT	DT	DT
MDDI	DT	DT	DT	DT
MHL CBUS	DT	DT	DT	DT
Mini/Micro LED	—	DT	—	DT
MIPI CSI LP	DT	DT	DT	DT
MIPI DSI LP	DT	DT	DT	DT
RGB Interface	DT	DT	DT	DT
ST7669	DT	DT	DT	DT

10BASE-T1S	—	DT	—	DT
HDLC	DT	DT	DT	DT
MDIO	—	DT	—	DT
MII	—	DT	—	DT
OA3p(PMD)	DT	DT	DT	DT
OATC6 over SPI	DT	DT	DT	DT
RGMII	—	DT	—	DT
RMII	—	DT	—	DT

MIPI RFFE 3	—	DT	—	DT
MIPI SPMI 2	—	DT	—	DT

AVSBus	DT	DT	DT	DT
PMBus	—	DT	—	DT
QI	DT	DT	DT	DT
SVI2	—	DT	—	DT
SVID	—	DT	—	DT
UFCS	DT	DT	DT	DT
USB PD 3.1	DT	DT	DT	DT

AccMeter	DT	DT	DT	DT
APML	DT	DT	DT	DT
BiSS-C	DT	DT	DT	DT
DALI	—	DT	—	DT
DMX512	DT	DT	DT	DT
HTSensor	DT	DT	DT	DT
IOLink	DT	DT	DT	DT
MBus	DT	DT	DT	DT
Microwire	DT	DT	DT	DT
Modbus	—	DT	—	DT
Profibus	—	DT	—	DT
PWM	—	D	—	D
QEI	DT	DT	DT	DT
SENT	DT	DT	DT	DT

A/D-Mux Flash	DT	DT	DT	DT
eMMC 4.5/MMC	—	DT	—	DT
HDQ	DT	DT	DT	DT
HyperBus	—	DT	—	DT
I2C EEPROM	DT	DT	DT	DT
I80	DT	DT	DT	DT
IDE	DT	DT	DT	DT
NAND Flash	—	DT	—	DT
QSPI	DT	DT	DT	DT
SD 2.0 (SDIO 2.0)	—	DT	—	DT
SDQ	DT	DT	DT	DT
SDR SDRAM	DT	DT	DT	DT
Serial Flash	—	DT	—	DT
Serial PSRAM	DT	DT	DT	DT
SPI-NAND	DT	DT	DT	DT
ULPI	DT	DT	DT	DT

CAN 2.0B/FD	DT	DT	DT	DT
FlexRay	DT	DT	DT	DT
J1850	DT	DT	DT	DT
LIN	DT	DT	DT	DT

1-Wire	DT	DT	DT	DT
3-Wire	DT	DT	DT	DT
7-Segment	DT	DT	DT	DT
8b10b decoding	DT	DT	DT	DT
A/D Converter	DT	DT	DT	DT
BSD	DT	DT	DT	DT
BSS	DT	DT	DT	DT
IrDA	DT	DT	DT	DT
ISELED	DT	DT	DT	DT
JTAG	DT	DT	DT	DT
JVC IR	DT	DT	DT	DT
LED_Ctrl	DT	DT	DT	DT
Lissajous	DT	DT	DT	DT
Microchip SWI	DT	DT	DT	DT
NEC IR	DT	DT	DT	DT
RC-5	DT	DT	DT	DT
RC-6	DT	DT	DT	DT
RT_SWI	DT	DT	DT	DT
Smart Card	DT	DT	DT	DT
SWD	DT	DT	DT	DT
SWIM	DT	DT	DT	DT
SWP	DT	DT	DT	DT
UNI/O	DT	DT	DT	DT
USB 1.1	—	DT	—	DT
USB4/TBT3 SB Channel	DT	DT	DT	DT
Wiegand	DT	DT	DT	DT

Accessories

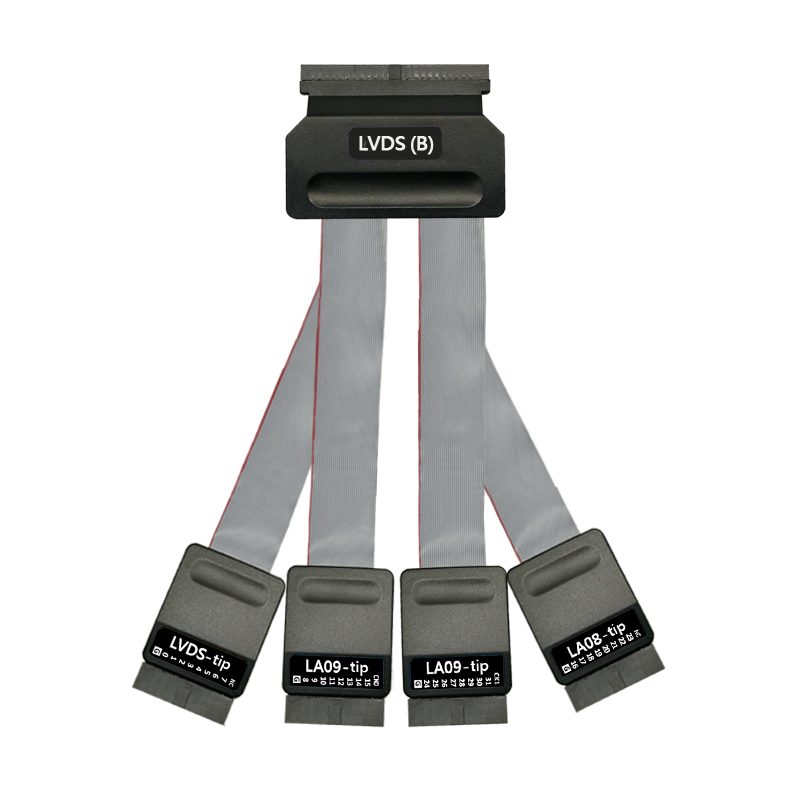

LVDS POD

SKU: LVDSPOD

$1,400.00

In Stock

Key Capabilities

Device Cascading

Cascade up to 16 Acute instruments for 64+ synchronized channels of logic analysis — scale your channel count to match your design complexity.

Third-Party DSO Stacking

Stack Acute logic analyzers with popular third-party oscilloscopes for time-correlated analog and digital capture in a single view.

Streaming Mode

Capture continuous protocol data to your PC's storage — monitor buses for hours or days without missing a transaction.

Power Sequence Validation

Validate power-up and power-down rail sequencing across 16 to 128 channels simultaneously — critical for multi-rail FPGA and SoC designs.

Compare

LA4000 vs Saleae Logic Pro 16 Why Choose Acute →

Not sure which instrument is right for your application?

Our engineering team can help you match the right instrument to your specific protocol, channel count, and performance requirements.

Talk to an Engineer

FAQ

What protocols does the LA4000 Series support?

The LA4000 Series supports I2C, SPI, CAN FD, UART, MIPI I3C, eMMC, CAN 2.0B, I2S, eSPI, SMBus, PMBus, SD UHS, QSPI, SVID, MIPI RFFE, DP AUX, Modbus, JTAG, MIPI SPMI, PDM, MIPI SoundWire, PCM, TDM, Ethernet MCTP, LTPI, MCTP Control, PLDM, M-PESTI, NCSI, SPDM, USB4/TBT3 SB, MIPI D-PHY, MIPI DSI LP, MII, RMII, RGMII, GMII, SGMII, Power Sequence, BiSS-C, HDLC, ProfiBus, PWM, NAND Flash, Serial NOR Flash, SPI NAND, 10BASE-T1S, OA3p, OPEN Alliance TC6, USB 1.1, SWD, and more — over 120 protocol decoders are available across the Acute instrument platform.

What operating systems does the LA4000 Series support?

The LA4000 Series supports Windows 10 and Windows 11 with the main application software, and Linux with a dedicated beta application (available on GitHub). USB 3.0 connectivity.

Can I get a demo or evaluation unit of the LA4000 Series?

Yes. Contact our engineering team at [email protected] or call +1 (415) 409-8771 to discuss evaluation options for your application.

Downloads

Software

BusFinder / LA3000 / LA4000 Softwareexe1.9.04

Application software for BusFinder protocol analyzers, LA3000, and LA4000 logic analyzers. Windows 10/11.

BusFinder / LA4000 Linux Software (Beta)appBeta

Linux application for the BusFinder and LA4000 series. Separate native Linux app — currently in beta. Download the latest release from GitHub.

Drivers

USB 3.0 Device Driverzip

USB 3.0 driver required for all USB 3.0-connected Acute instruments. Windows 7/8/10/11.

SDK & API

AqLAVISA SDK (Logic Analyzer)zip

VISA-compatible SDK for integrating Acute logic analyzers into automated test environments. Supports gRPC, C, C#, and Python.

Protocol Decode Open Interface SDKzip

SDK for creating custom protocol decoders using the Acute decode open interface.

Datasheets

LA4000 Series Datasheetpdf

Complete specifications for LA4068E, LA4068B, LA4136E, and LA4136B high-channel logic analyzers.

User Manuals

Protocol Decode & Trigger Manualpdf

Comprehensive reference for all 120+ protocol decoders and protocol-based triggers across all Acute instruments.
