TravelScope Series

4-channel USB 3.0 PC-based digital storage oscilloscopes with up to 200 MHz bandwidth, 1 GS/s sample rate, and deep memory. Includes Data Logger for long-duration recording.

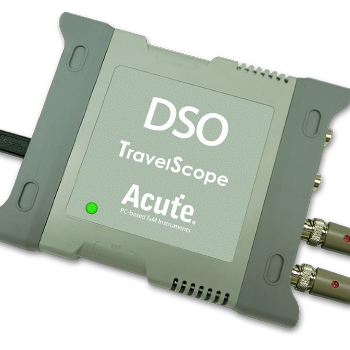

The TravelScope series is a PC-based 4-channel digital oscilloscope with 200 MHz bandwidth and 1 GS/s sample rate. All models include 120+ protocol decoders. Higher-tier models add advanced triggering, protocol-aware triggers, and the TS3124V adds electrical validation — making it a complete signal integrity and protocol compliance tool in a portable package.

  • 4 analog channels, 200 MHz bandwidth, 1 GS/s
  • 120+ protocol decoders included with every model
  • TS3124H/V: 12–16 bit high-resolution mode
  • Windows 10/11 + native Linux app (beta)

Choose Your Model

TS3124E

TS3124E

SKU: TS3124E

—
Discontinued
TS3124B

TS3124B

SKU: TS3124B

$1,200.00
In Stock
TS3124H

TS3124H

SKU: TS3124H

$1,800.00
In Stock
TS3124V

TS3124V

SKU: TS3124V

$2,800.00
In Stock

Compare Models

Specification TS3124E Discontinued TS3124B TS3124H TS3124V
Analog Channels 4 4 4 4
Bandwidth 200 MHz 200 MHz 200 MHz 200 MHz
Sample Rate 1 GS/s 1 GS/s 1 GS/s 1 GS/s
Record Length 128 Mpts/ch 128 Mpts/ch 128 Mpts/ch 128 Mpts/ch
Vertical Resolution 8 bits 8 bits 8–16 bits 8–16 bits
DSO Trigger Group I Group I, II Group I, II Group I, II
Protocol Trigger/Decode — Tier I Tier I Tier I, II
Electrical Validation — — — I2C, I3C, SPI, UART...
List Price — $1,200 $1,800 $2,800

DSO Group I: Edge, Either, External, Falling, Rising, Video, Width

DSO Group II: Runt, Pattern/State, Timeout, Transition, Setup/Hold, B-Trigger, Window

Protocol Tier I: BiSS-C, CAN 2.0B/FD, DALI, DP AUX, MIPI I3C, USB PD 3.1

Protocol Tier II: SVI3, SVID (restricted access)

Protocol Support Matrix

Compare protocol decode, hardware trigger, and electrical validation support across the models in this series.

76 supported protocols·DDecode   TTrigger   EVElectrical Validation

ProtocolTS3124EDiscontinuedTS3124BTS3124HTS3124V
I2CDTDTDTDTEV
MIPI I3CDTDTDTDTEV
SPIDTDTDTDTEV
UARTDTDTDTDTEV

Compare

TravelScope vs PicoScope 3000Why Choose Acute →

Not sure which instrument is right for your application?

Our engineering team can help you match the right instrument to your specific protocol, channel count, and performance requirements.

Talk to an Engineer

FAQ

What protocols does the TravelScope Series support?
The TravelScope Series is part of the Acute instrument family which supports over 120 protocol decoders.
What operating systems does the TravelScope Series support?
The TravelScope Series supports Windows 10 and Windows 11 with the main application software, and Linux with a dedicated beta application (available on GitHub). USB 3.0 connectivity.
Can I get a demo or evaluation unit of the TravelScope Series?
Yes. Contact our engineering team at [email protected] or call +1 (415) 409-8771 to discuss evaluation options for your application.
