MSO2000 Series — Mixed-Signal Oscilloscope

MSO2116E — Mixed-Signal Logic Analyzer

Name: MSO2116E
Brand: Acute Technology
SKU: MSO2116E
Price: 1400.00 USD
Availability: InStock

SKU: MSO2116E

$1,400.00 In Stock

Qty:

Request Quote

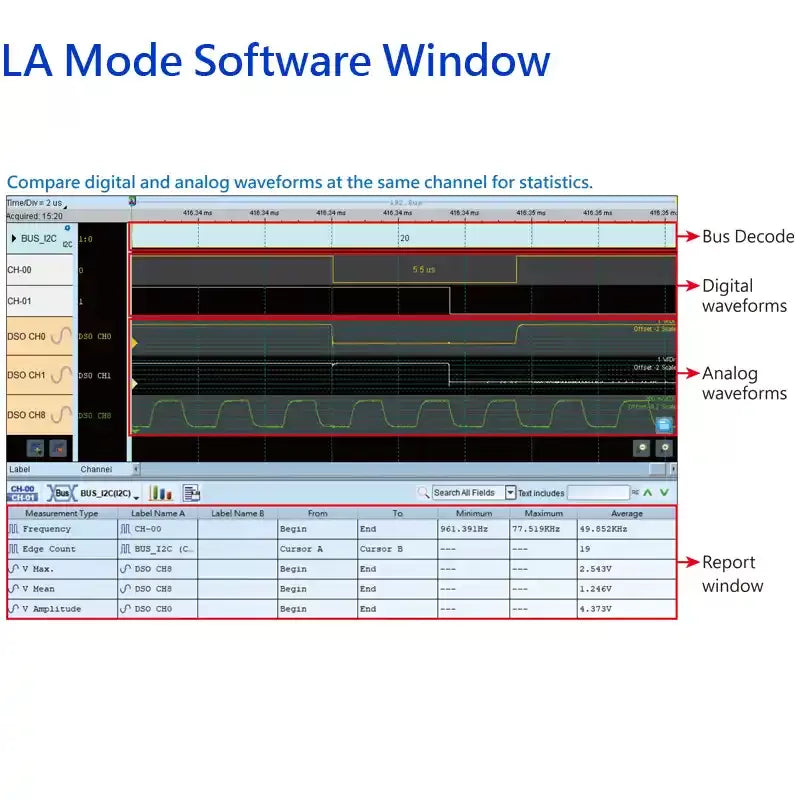

16 digital channels + simple DSO

2 GHz timing analysis, 4 Gb memory

16-channel power sequence validation

Tier I + II bus trigger

U.S. based engineering support

Datasheet (PDF) User Manual (PDF)

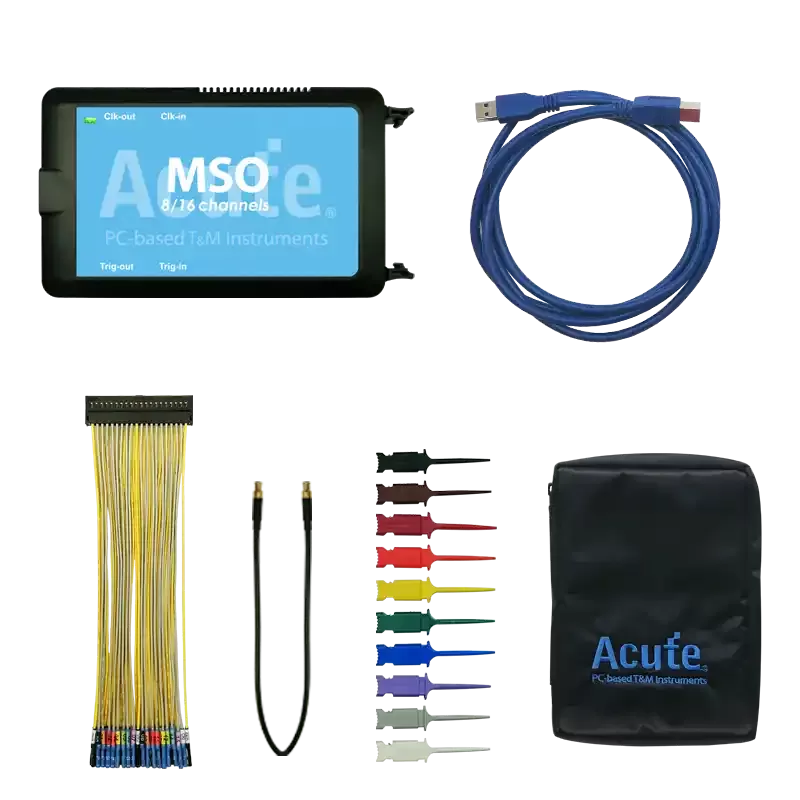

About the MSO2116E

The MSO2116E doubles the channel count to 16 with 4 Gb memory and 16-channel power sequence validation. Tier I + II bus triggers add CAN FD, DP AUX, I2S, and USB PD 3 — covering automotive and power delivery applications.

Key Highlights

16 digital channels + simple oscilloscope
16-channel power sequence validation
Tier I + II bus triggers

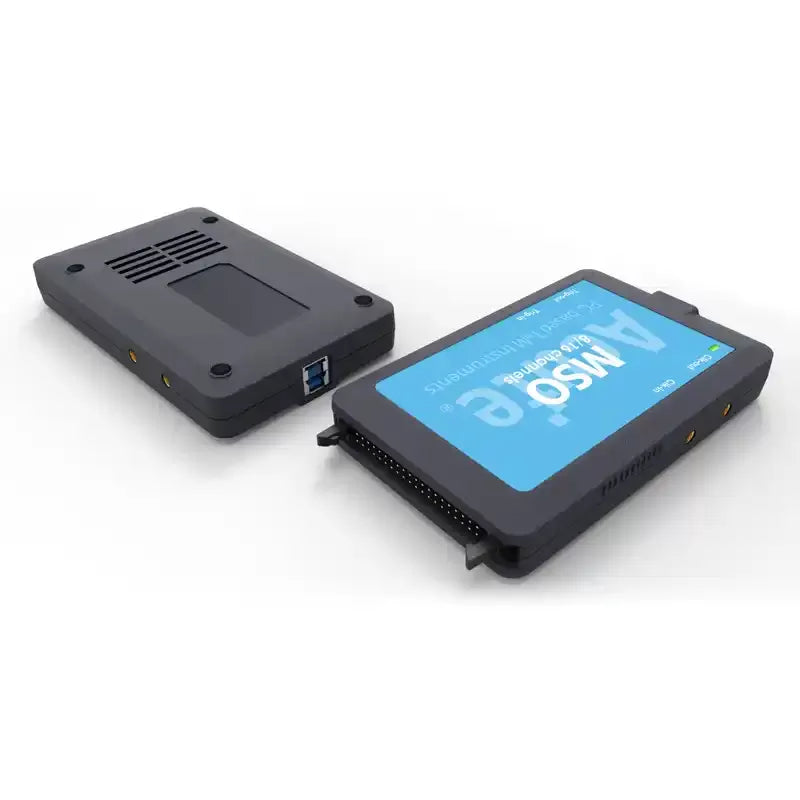

Compact USB 3.0 form factor

Digital Channels	16
Analog Channels	2
Analog Bandwidth	40 MHz
Timing Analysis	2 GHz
Memory	4 Gb
Power Seq. Channels	16
Bus Trigger	Tier I + II

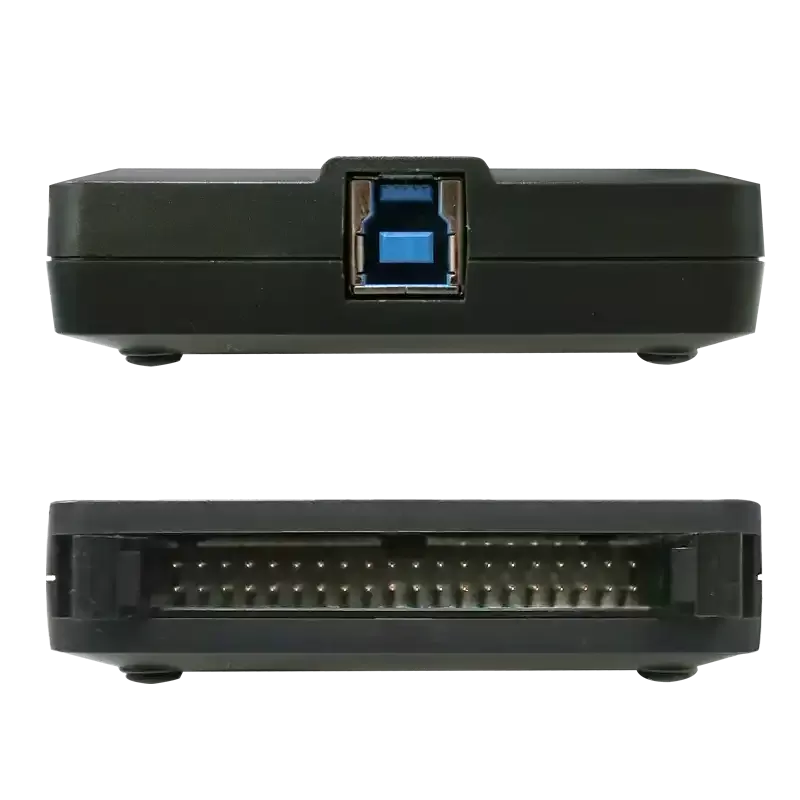

Interface	USB 3.0

Protocol Support

90+ protocols decoded · 90+ with hardware trigger

91 supported protocols·DDecode TTrigger EVElectrical Validation

Protocol	Decode	Trigger

I2C	D	T
MIPI I3C	D	T
SPI	D	T
UART	D	T

CODEC_SSI	D	T
HD Audio	D	T
I2S	D	T
MIPI SoundWire 1.2	D	T
PCM	D	T
PDM	D	T
S/PDIF	D	T
TDM	D	T

HID over I2C	D	T
HID over SPI	D	T
LPT	D	T
M-PESTI	D	T
Math	D	T
MCTP over I2C/I3C/SMBus	D	T
PECI 3.0	D	T
PS/2	D	T
Serial IRQ	D	T
SGPIO	D	T
SMI	D	T
SSI	D	T

BT1120	D	T
CEC	D	T
Close Caption	D	T
DDC(EDID)	D	T
DP_Aux	D	T
ITU-R BT.656 (CCIR656)	D	T
LCD1602	D	T
Line Decoding	D	T
Line Encoding	D	T
MDDI	D	T
MHL CBUS	D	T
MIPI CSI LP	D	T
MIPI DSI LP	D	T
ST7669	D	T

10BASE-T1S	D	T
HDLC	D	T
OA3p(PMD)	D	T
OATC6 over SPI	D	T

AVSBus	D	T
QI	D	T
UFCS	D	T
USB PD 3.1	D	T

AccMeter	D	T
APML	D	T
BiSS-C	D	T
DMX512	D	T
HTSensor	D	T
IOLink	D	T
MBus	D	T
Microwire	D	T
PWM	D	—
QEI	D	T
SENT	D	T

HDQ	D	T
I2C EEPROM	D	T
QSPI	D	T
SDQ	D	T
SPI-NAND	D	T
ULPI	D	T

CAN 2.0B/FD	D	T
FlexRay	D	T
J1850	D	T
LIN	D	T

1-Wire	D	T
3-Wire	D	T
7-Segment	D	T
8b10b decoding	D	T
A/D Converter	D	T
BSD	D	T
BSS	D	T
IrDA	D	T
ISELED	D	T
JTAG	D	T
JVC IR	D	T
Lissajous	D	T
Microchip SWI	D	T
NEC IR	D	T
RC-5	D	T
RC-6	D	T
RT_SWI	D	T
Smart Card	D	T
SWD	D	T
SWIM	D	T
SWP	D	T
UNI/O	D	T
USB4/TBT3 SB Channel	D	T
Wiegand	D	T

Compare MSO2000 Series Models

See how the MSO2116E compares to other models in the MSO2000 Series series.

Specification	MSO2008E Discontinued	MSO2116E Current	MSO2116B	MSO2216B
Digital Channels	8	16	16	16
Analog Channels	2	2	2	2
Digital Timing	2 GHz	2 GHz	2 GHz	2 GHz
State Analysis	200 MHz	200 MHz	200 MHz	200 MHz
Analog Bandwidth	40 MHz	40 MHz	40 MHz	40 MHz
Memory	2 Gb	4 Gb	4 Gb	8 Gb
Bus Trigger	Tier I	Tier I, II	Tier I, II, III	Tier I, II, III, IV
Protocol Analyzer	Tier I	Tier I, II	Tier I, II, III	Tier I, II, III, IV
List Price	—	$1,400	$3,400	$3,500
