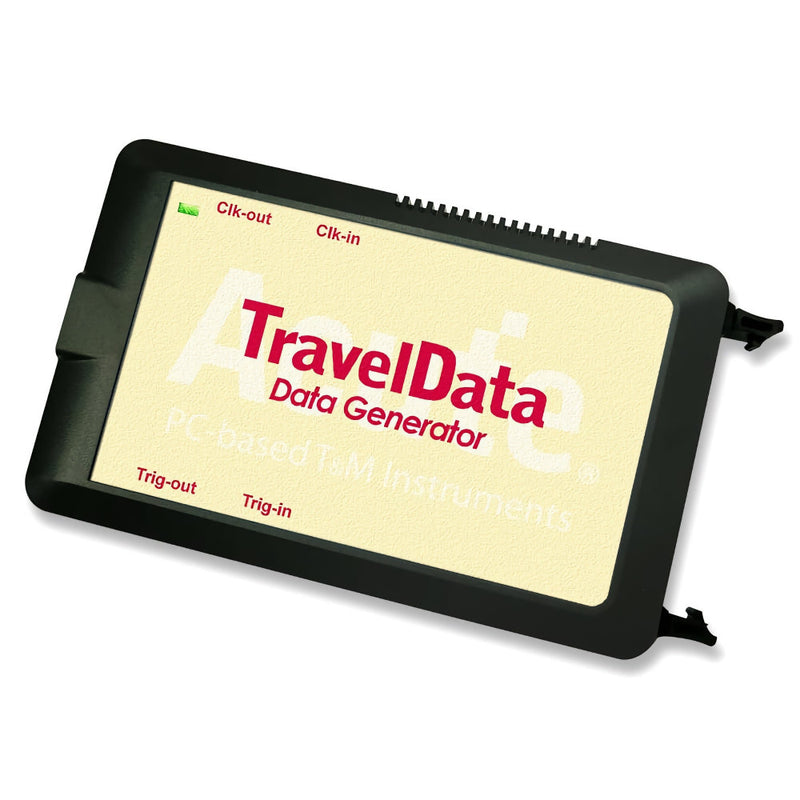

TravelData Series
Compact USB 3.0 digital pattern generators with 8–16 output channels for stimulus generation, protocol simulation, and automated test signal creation.
The TravelData series provides compact, USB 3.0 bus-powered digital pattern generation for test stimulus and protocol simulation. Available in 8 and 16-channel configurations, they are ideal for generating test signals during device validation and system integration.
- 8 or 16 channels of pattern generation
- USB 3.0 bus-powered portable design
- Protocol stimulus for device-under-test validation
Compare Models
| Specification | TD3008E Discontinued | TD3116B | TD3216B |
|---|---|---|---|
| Data Channels | 8 | 16 | 16 |
| Event Channels | 3 | 3 | 3 |
| Max Data Rate | 200 Mbps/ch | 200 Mbps/ch | 200 Mbps/ch |
| Clock Range | 1 Hz – 200 MHz | 1 Hz – 200 MHz | 1 Hz – 200 MHz |
| Pattern Depth | 512 Kb/ch | 1 Mb/ch | 256 Mb/ch |
| Data Output | 0.9–4.5 Vpp | 0.9–4.5 Vpp | 0.9–4.5 Vpp |
| List Price | — | $2,100 | $3,500 |
Preset patterns: I2C, MIPI I3C, MIPI RFFE, PMBus, PWM, SPI, Sync/Async Counter
Not sure which instrument is right for your application?
Our engineering team can help you match the right instrument to your specific protocol, channel count, and performance requirements.
FAQ
What protocols does the TravelData Series support?
The TravelData Series is part of the Acute instrument family which supports over 120 protocol decoders.
What operating systems does the TravelData Series support?
All Acute instruments including the TravelData Series support Windows 10 and Windows 11 with USB 3.0 connectivity.
Can I get a demo or evaluation unit of the TravelData Series?
Yes. Contact our engineering team at [email protected] or call +1 (415) 409-8771 to discuss evaluation options for your application.
