MSO3124V
SKU: MSO3124V

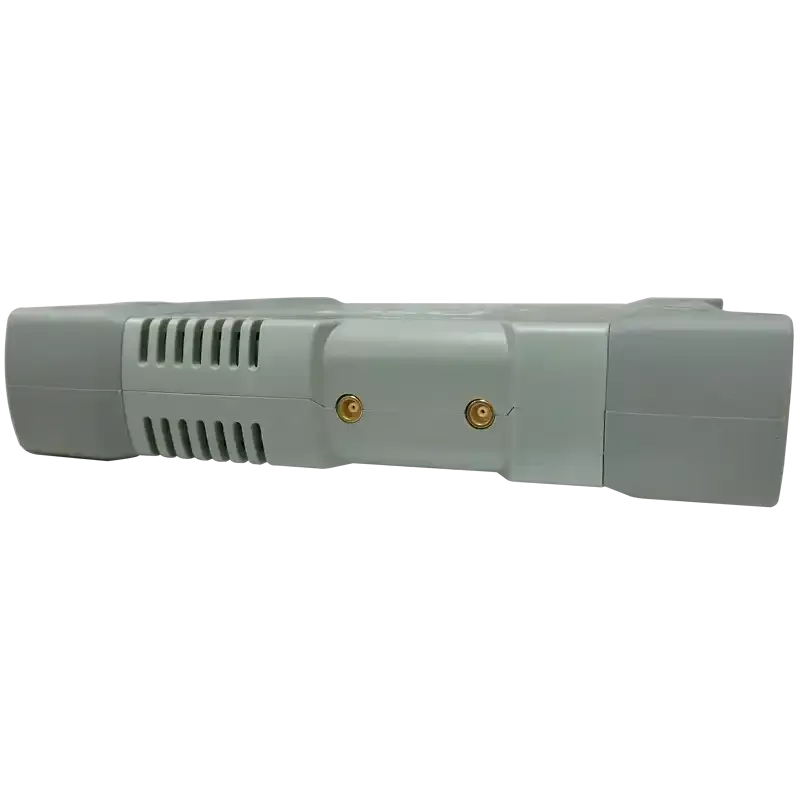

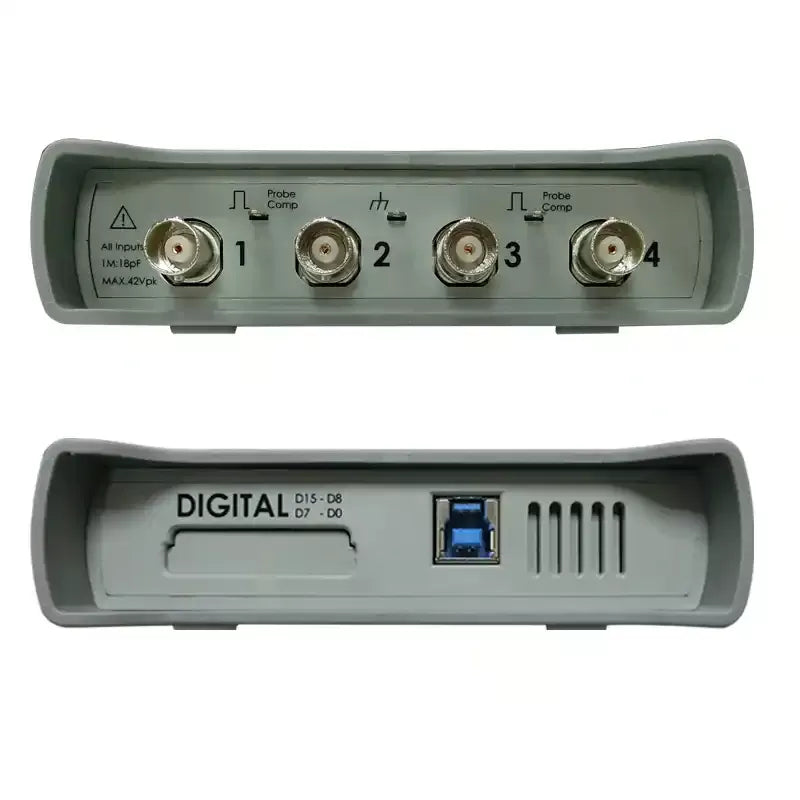

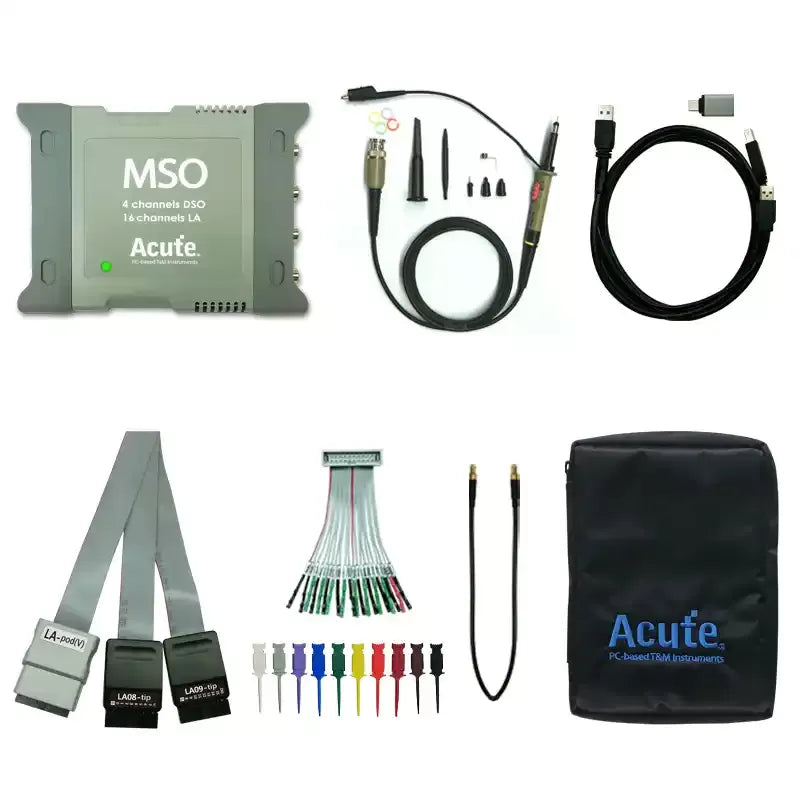

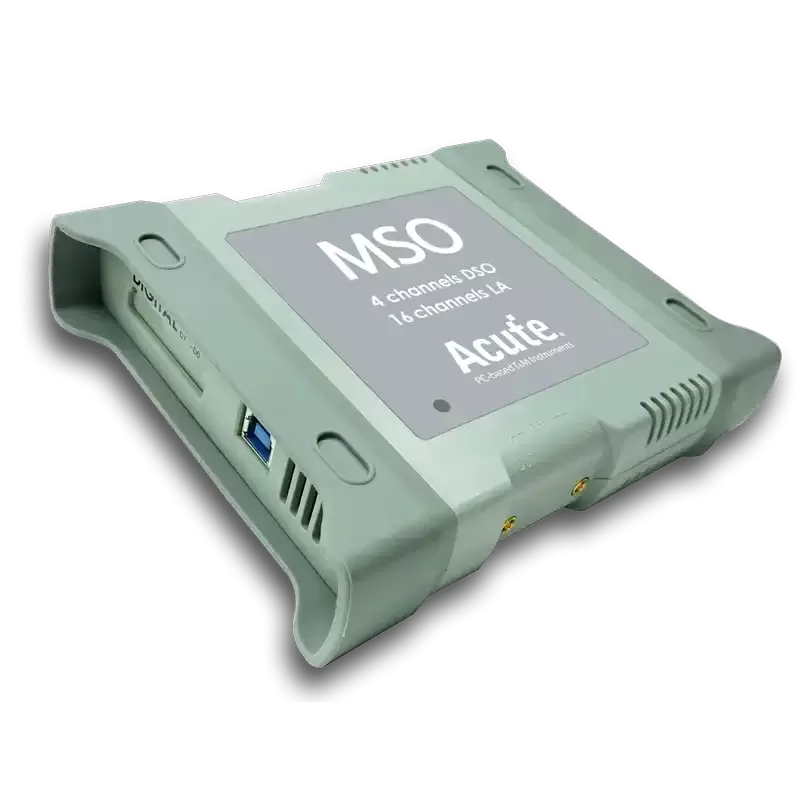

About the MSO3124V
The MSO3124V is the most capable MSO3000 — 16-bit high-resolution analog, the full trigger suite (including Bus I + II protocol-aware analog triggers), and electrical validation for I2C, I3C, SPI, and UART. It is the complete mixed-signal debug platform for semiconductor validation.
Key Highlights
- 16-bit resolution + electrical validation for I2C, I3C, SPI, UART
- Full analog trigger suite including Bus I + II protocol-aware triggers
- All three tiers of digital bus triggers
- The most capable PC-based mixed-signal oscilloscope available
| Analog Channels | 4 (16-bit high resolution) |
| Digital Channels | 16 |
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Analog Trigger | Group I + II, Bus I + II |
| Electrical Validation | I2C, I3C, SPI, UART |
| OS Support | Windows 10 / 11 · Linux (beta) |
Protocol Support
110+ protocols decoded · 110+ with hardware trigger · 8with electrical validation
116 supported protocols·DDecode TTrigger EVElectrical Validation
| Protocol | Decode | Trigger | Electrical Validation |
|---|---|---|---|
| I2C | D | T | EV |
| MIPI I3C | D | T | EV |
| SPI | D | T | EV |
| UART | D | T | EV |
No protocols match your search.
Compare MSO3000 Series Models
See how the MSO3124V compares to other models in the MSO3000 Series series.
| Specification | MSO3124E Discontinued | MSO3124B | MSO3124H | MSO3124V Current |
|---|---|---|---|---|
| Analog Channels | 4 | 4 | 4 | 4 |
| Digital Channels | 16 | 16 | 16 | 16 |
| Analog Bandwidth | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Analog Sample Rate | 1 GS/s | 1 GS/s | 1 GS/s | 1 GS/s |
| Digital Timing | 2 GHz | 2 GHz | 2 GHz | 2 GHz |
| State Analysis | 250 MHz | 250 MHz | 250 MHz | 250 MHz |
| Record Length (A/D) | 128/256 Mpts | 128/256 Mpts | 128/256 Mpts | 128/256 Mpts |
| Vertical Resolution | 8 bits | 8 bits | 16 bits | 16 bits |
| Trigger (Analog/Digital) | I / I | I, II, Bus I / I, II | I, II, Bus I / I, II, III | I, II, Bus I, II / I, II, III |
| Electrical Validation | — | — | — | I2C, I3C, SPI, UART... |
| List Price | — | $3,100 | $3,800 | $4,500 |
