BF7264 Pro
SKU: bf7264-pro

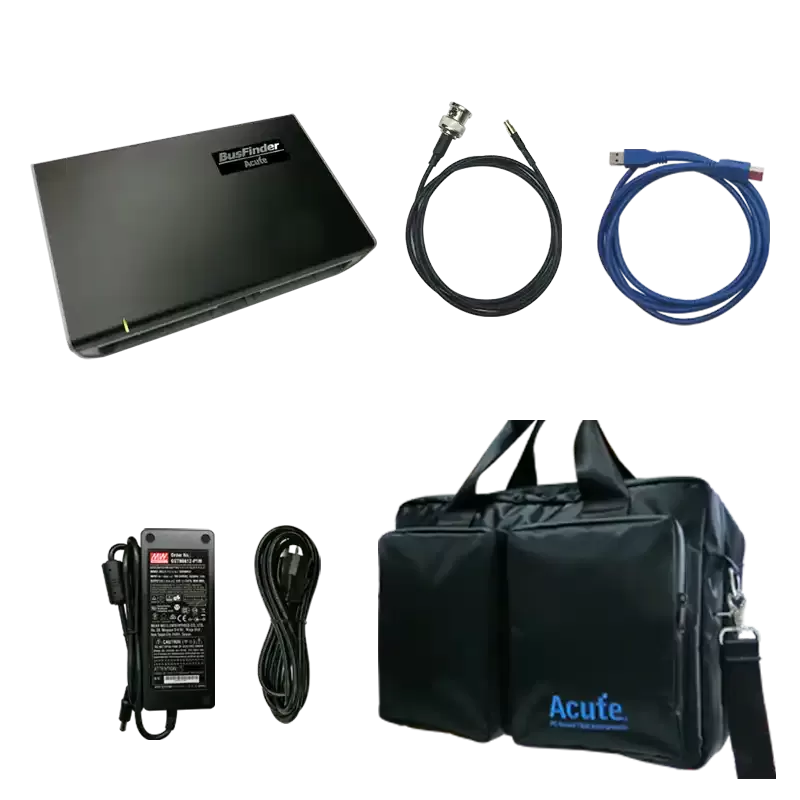

Base unit only — additional accessories required (see configurator below).
About the BF7264 Pro

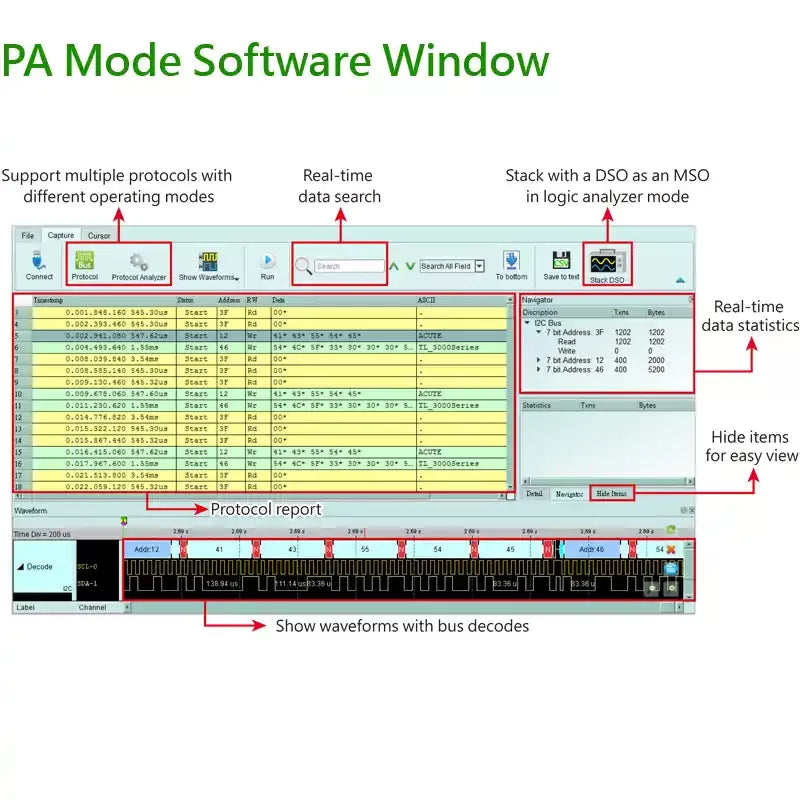

The BF7264 Pro is a 2-in-1 advanced protocol analyzer and 64-channel logic analyzer designed for high-speed storage, display, and networking protocol debug. It provides real-time data display with protocol-specific active probes and up to 32 Gb of capture memory.
Key Highlights
- Real-time protocol monitoring — like a dashcam for your bus
- Protocol options: eDP 1.4a, eMMC 5.1, MIPI D-PHY 1.2, NAND Flash, SD/SDIO, SGMII, UFS 2.1

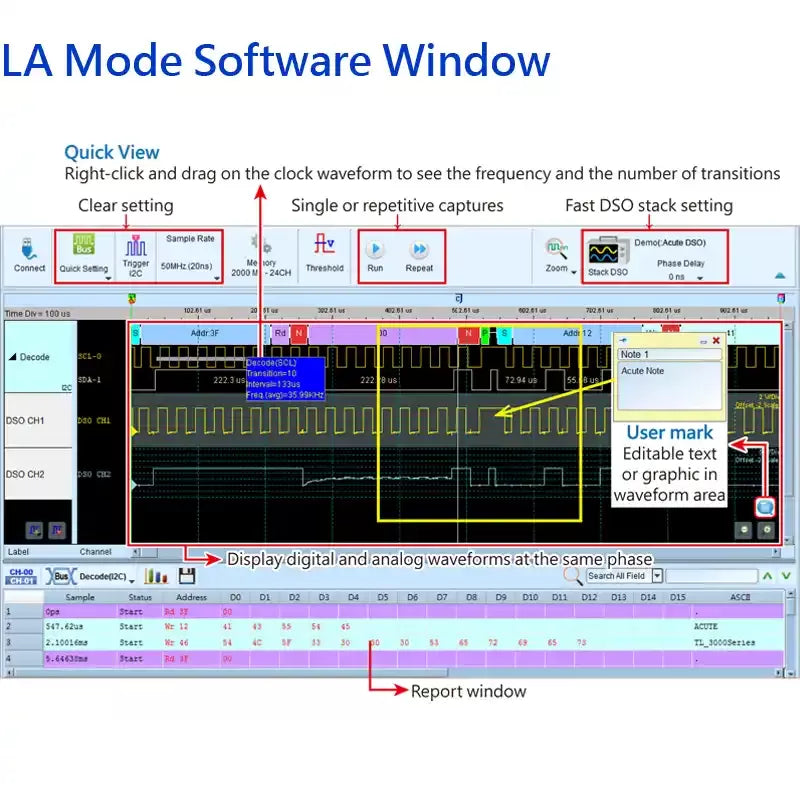

- 64-channel logic analyzer with 100+ decoders
| Logic Channels | 64 |
| Memory | 32 Gb total |
| Protocol Options | eDP, eMMC, MIPI D-PHY, NAND, SD, SGMII, UFS |
| Timing Analysis | 2.4 GHz |
| Real-Time Decode | Yes (with active probes) |
| Interface | USB 3.0 |
| OS Support | Windows 10 / 11 · Linux (beta) |
Una aplicación nativa de Linux está disponible en beta.
Descargar desde GitHubConfigure su solución
The BF7264 Pro requires at least one protocol option to perform protocol analysis. Select the option(s) that match your target interface.
Choose Your Protocol Option
Storage
Display
Networking
Logic Analysis
Your Configuration
Se requiere al menos una opción
Se requiere al menos una opción
Pruebe antes de comprar
Podemos enviar una unidad de demostración para una evaluación de una semana para que su equipo pueda probarla en su aplicación real. Contáctenos para coordinar.
Solicitar una demo →Protocolos compatibles
