Serie MSO2000 — Mixed-Signal Oscilloscope

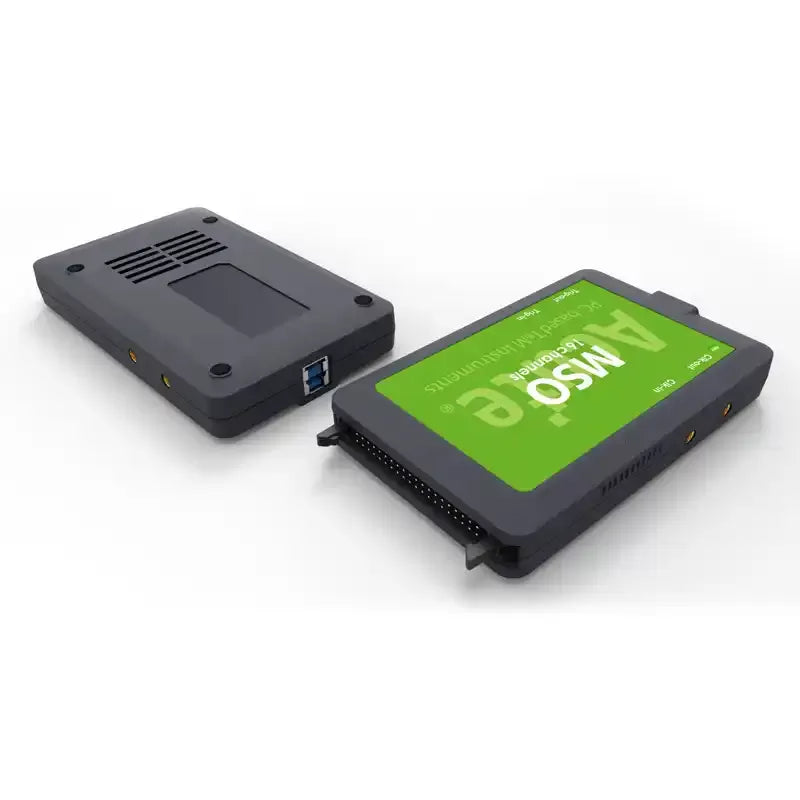

MSO2216B — Mixed-Signal Logic Analyzer

Name: MSO2216B
Brand: Acute Technology
SKU: MSO2216B
Price: 3500.00 USD
Availability: InStock

SKU: MSO2216B

$3,500.00 En stock

Cant.:

Solicitar cotización

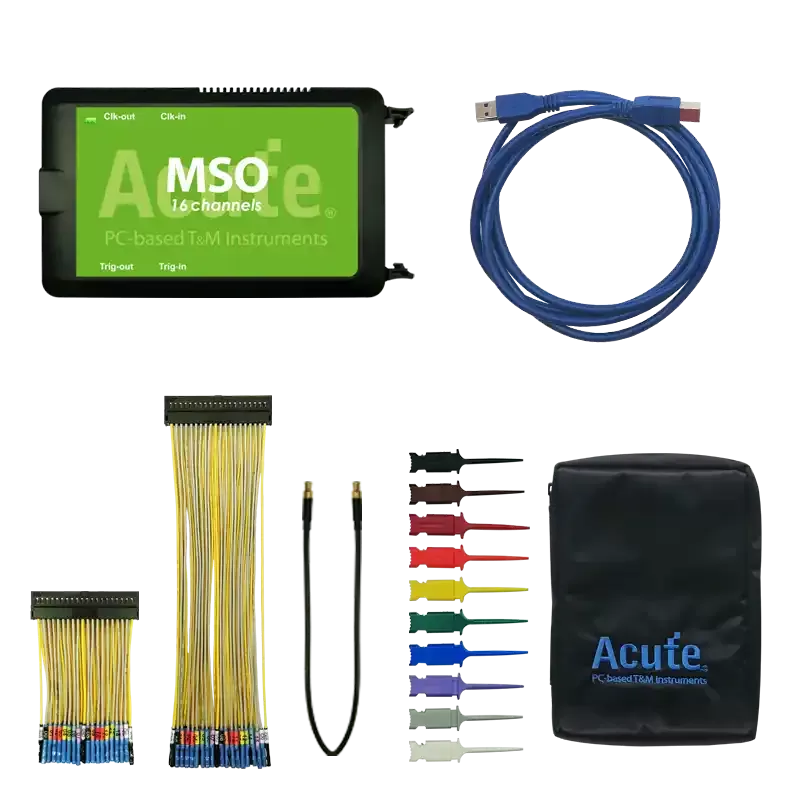

16 digital channels + simple DSO

2 GHz timing analysis, 8 Gb memory

Up to 128 channels power sequence validation (cascaded)

Tier I + II + III + IV bus trigger — full protocol suite

U.S. based engineering support

Datasheet (PDF) User Manual (PDF)

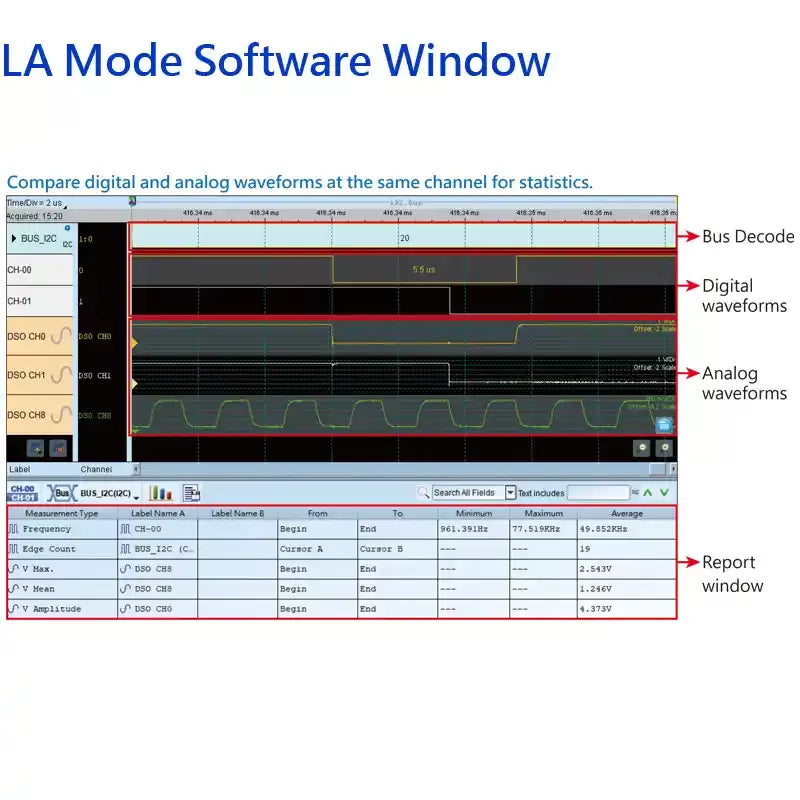

About the MSO2216B

The MSO2216B is the flagship MSO2000, offering the deepest memory (8 Gb), full 4-tier bus trigger support, and cascade capability for up to 128-channel power sequence validation. It is the most capable mixed-signal logic analyzer for Intel and AMD platform validation.

Key Highlights

Full Tier I + II + III + IV bus triggers
8 Gb memory for the longest capture sessions
Up to 128 channels power sequence validation (8 units cascaded)
eSPI + SMBus simultaneous decode for platform debug

Digital Channels	16
Analog Channels	2
Analog Bandwidth	40 MHz
Timing Analysis	2 GHz
Memory	8 Gb
Power Seq. Channels	16 (128 cascaded)
Bus Trigger	Tier I + II + III + IV

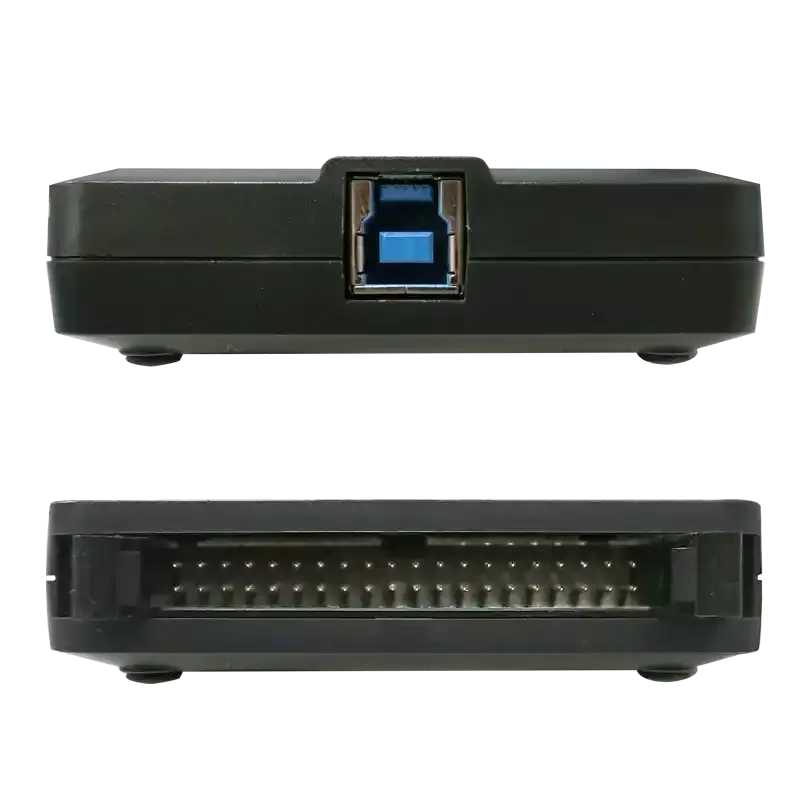

Interface	USB 3.0

Soporte de protocolos

110+ protocolos decodificados · 110+ con disparo por hardware

113 protocolos soportados·DDecodificación TDisparo EVValidación eléctrica

Protocolo	Decodificación	Disparo

I2C	D	T
MIPI I3C	D	T
SPI	D	T
UART	D	T

CODEC_SSI	D	T
HD Audio	D	T
I2S	D	T
MIPI SoundWire 1.2	D	T
PCM	D	T
PDM	D	T
S/PDIF	D	T
TDM	D	T

eSPI	D	T
HID over I2C	D	T
HID over SPI	D	T
LPC	D	T
LPT	D	T
M-PESTI	D	T
Math	D	T
MCTP over I2C/I3C/SMBus	D	T
PECI 3.0	D	T
PS/2	D	T
Serial IRQ	D	T
SGPIO	D	T
SMBus (SBS, SPD)	D	T
SMI	D	T
SSI	D	T

BT1120	D	T
CEC	D	T
Close Caption	D	T
DDC(EDID)	D	T
DP_Aux	D	T
ITU-R BT.656 (CCIR656)	D	T
LCD1602	D	T
Line Decoding	D	T
Line Encoding	D	T
MDDI	D	T
MHL CBUS	D	T
Mini/Micro LED	D	T
MIPI CSI LP	D	T
MIPI DSI LP	D	T
ST7669	D	T

10BASE-T1S	D	T
HDLC	D	T
MDIO	D	T
MII	D	T
OA3p(PMD)	D	T
OATC6 over SPI	D	T
RGMII	D	T
RMII	D	T

MIPI RFFE 3	D	T
MIPI SPMI 2	D	T

AVSBus	D	T
PMBus	D	T
Power Sequence	D	T
QI	D	T
SVI2	D	T
SVI3	D	T
SVID	D	T
UFCS	D	T
USB PD 3.1	D	T

AccMeter	D	T
APML	D	T
BiSS-C	D	T
DALI	D	T
DMX512	D	T
HTSensor	D	T
IOLink	D	T
MBus	D	T
Microwire	D	T
Modbus	D	T
Profibus	D	T
PWM	D	—
QEI	D	T
SENT	D	T

eMMC 4.5/MMC	D	T
HDQ	D	T
I2C EEPROM	D	T
QSPI	D	T
SD 2.0 (SDIO 2.0)	D	T
SDQ	D	T
Serial Flash	D	T
SPI-NAND	D	T
ULPI	D	T

CAN 2.0B/FD	D	T
FlexRay	D	T
J1850	D	T
LIN	D	T

1-Wire	D	T
3-Wire	D	T
7-Segment	D	T
8b10b decoding	D	T
A/D Converter	D	T
BSD	D	T
BSS	D	T
IrDA	D	T
ISELED	D	T
JTAG	D	T
JVC IR	D	T
Lissajous	D	T
Microchip SWI	D	T
NEC IR	D	T
RC-5	D	T
RC-6	D	T
RT_SWI	D	T
Smart Card	D	T
SWD	D	T
SWIM	D	T
SWP	D	T
UNI/O	D	T
USB 1.1	D	T
USB4/TBT3 SB Channel	D	T
Wiegand	D	T

Compare Serie MSO2000 Models

See how the MSO2216B compares to other models in the Serie MSO2000 series.

Specification	MSO2008E Discontinued	MSO2116E	MSO2116B	MSO2216B Current
Digital Channels	8	16	16	16
Analog Channels	2	2	2	2
Digital Timing	2 GHz	2 GHz	2 GHz	2 GHz
State Analysis	200 MHz	200 MHz	200 MHz	200 MHz
Analog Bandwidth	40 MHz	40 MHz	40 MHz	40 MHz
Memory	2 Gb	4 Gb	4 Gb	8 Gb
Bus Trigger	Tier I	Tier I, II	Tier I, II, III	Tier I, II, III, IV
Protocol Analyzer	Tier I	Tier I, II	Tier I, II, III	Tier I, II, III, IV
List Price	—	$1,400	$3,400	$3,500
