Serie TravelLogic — Logic Analyzer

TL4134E

Name: TL4134E
Brand: Acute Technology
SKU: TL4134E
Price: 1400.00 USD
Availability: InStock

SKU: TL4134E

$1,400.00 En stock

Cant.:

Solicitar cotización

34 channels with 2 GHz timing analysis

4 Gb memory depth

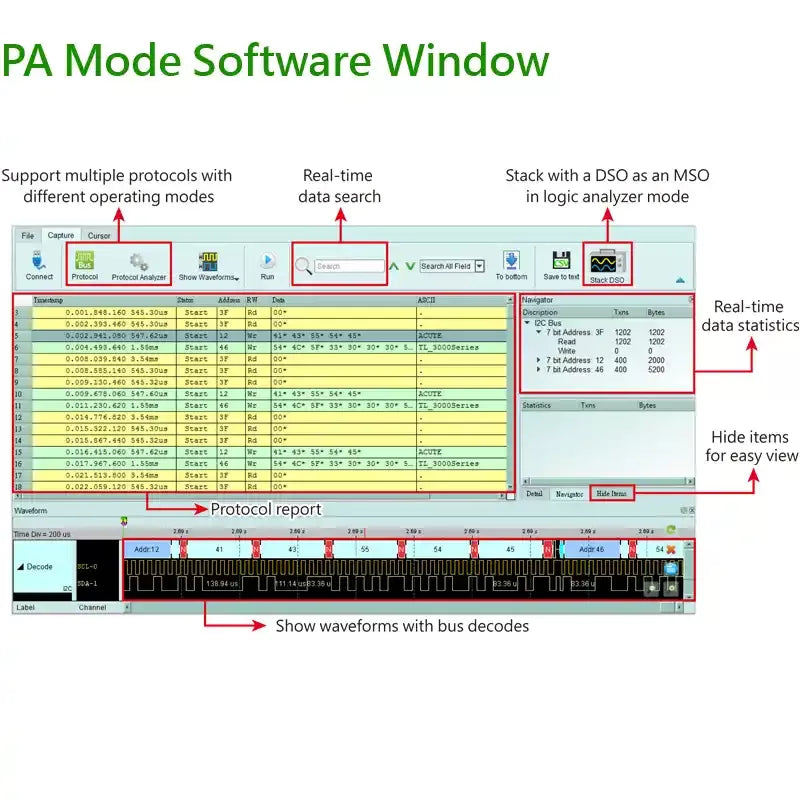

Tier I bus trigger and protocol analyzer

Stack with third-party oscilloscopes to form an MSO

U.S. based engineering support

Datasheet (PDF) User Manual (PDF)

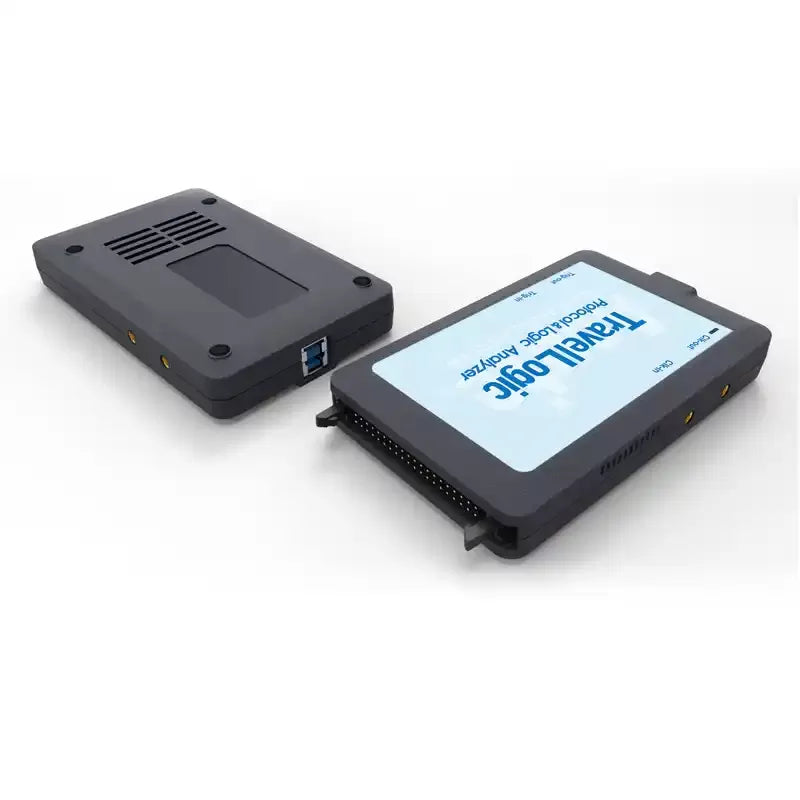

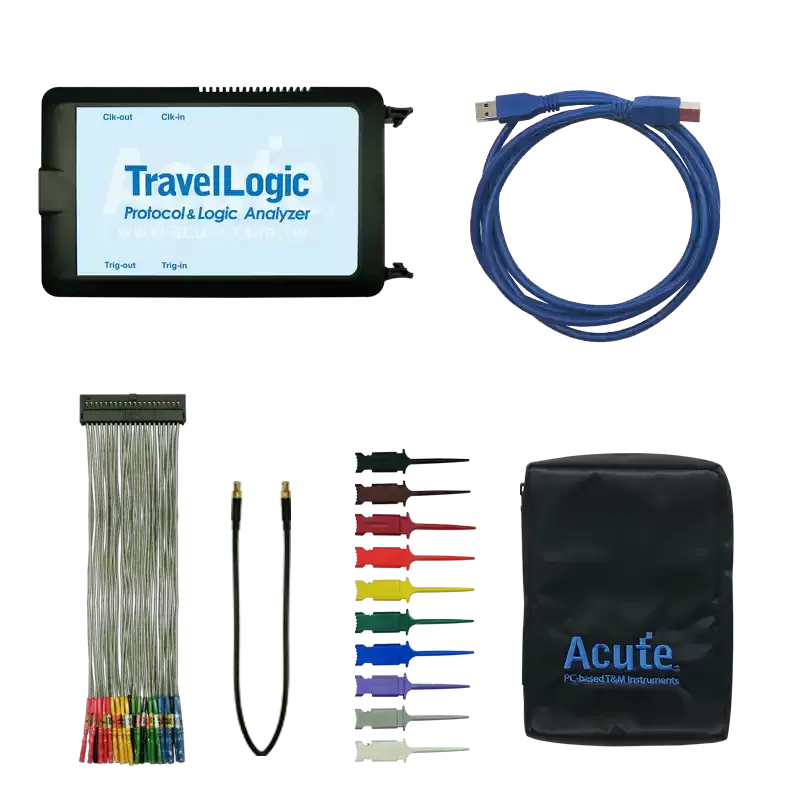

About the TL4134E

The TL4134E delivers 34-channel logic analysis with 2 GHz timing resolution in a compact, portable form factor. With 4 Gb of capture memory and Tier I protocol support, it handles the most common embedded debugging tasks at a fraction of the cost of benchtop instruments.

Key Highlights

2 GHz timing analysis — captures the fastest digital signals
Cascade multiple units for 288+ synchronized channels
Stack with third-party oscilloscopes (Keysight, R&S, Tektronix) to form an MSO
Streaming mode for hours-long continuous capture

Channels	34
Timing Analysis	2 GHz
State Analysis	200 MHz
Memory	4 Gb
Protocol Decode	Tier I (120+ total)

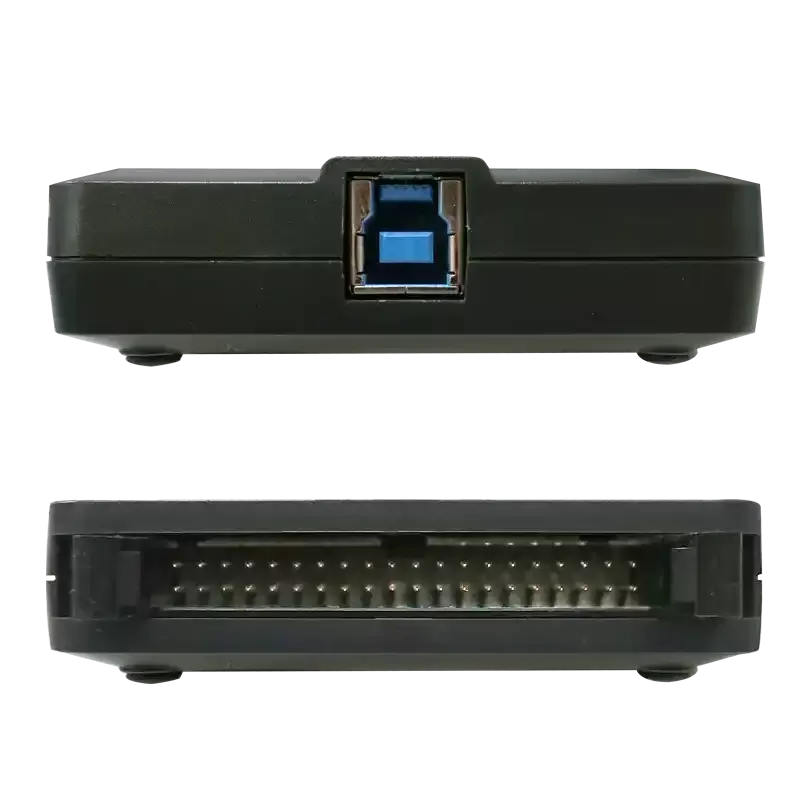

Interface	USB 3.0
OS Support	Windows 10 / 11 · Linux (beta)

Soporte para Linux disponible Beta

Una aplicación nativa de Linux está disponible en beta.

Descargar desde GitHub

Soporte de protocolos

90+ protocolos decodificados · 90+ con disparo por hardware

96 protocolos soportados·DDecodificación TDisparo EVValidación eléctrica

Protocolo	Decodificación	Disparo

I2C	D	T
MIPI I3C	D	T
SPI	D	T
UART	D	T

CODEC_SSI	D	T
HD Audio	D	T
I2S	D	T
MIPI SoundWire 1.2	D	T
PCM	D	T
PDM	D	T
S/PDIF	D	T
TDM	D	T

HID over I2C	D	T
HID over SPI	D	T
LPT	D	T
M-PESTI	D	T
Math	D	T
MCTP over I2C/I3C/SMBus	D	T
PECI 3.0	D	T
PS/2	D	T
Serial IRQ	D	T
SGPIO	D	T
SMI	D	T
SSI	D	T

BT1120	D	T
CEC	D	T
Close Caption	D	T
DDC(EDID)	D	T
DP_Aux	D	T
ITU-R BT.656 (CCIR656)	D	T
LCD1602	D	T
Line Decoding	D	T
Line Encoding	D	T
MDDI	D	T
MHL CBUS	D	T
MIPI CSI LP	D	T
MIPI DSI LP	D	T
RGB Interface	D	T
ST7669	D	T

10BASE-T1S	D	T
HDLC	D	T
OA3p(PMD)	D	T
OATC6 over SPI	D	T

AVSBus	D	T
QI	D	T
UFCS	D	T
USB PD 3.1	D	T

AccMeter	D	T
APML	D	T
BiSS-C	D	T
DMX512	D	T
HTSensor	D	T
IOLink	D	T
MBus	D	T
Microwire	D	T
QEI	D	T
SENT	D	T

A/D-Mux Flash	D	T
HDQ	D	T
I2C EEPROM	D	T
I80	D	T
IDE	D	T
QSPI	D	T
SDQ	D	T
SDR SDRAM	D	T
SPI-NAND	D	T
ULPI	D	T

CAN 2.0B/FD	D	T
FlexRay	D	T
J1850	D	T
LIN	D	T

1-Wire	D	T
3-Wire	D	T
7-Segment	D	T
8b10b decoding	D	T
A/D Converter	D	T
BSD	D	T
BSS	D	T
IrDA	D	T
ISELED	D	T
JTAG	D	T
JVC IR	D	T
LED_Ctrl	D	T
Lissajous	D	T
Microchip SWI	D	T
NEC IR	D	T
RC-5	D	T
RC-6	D	T
RT_SWI	D	T
Smart Card	D	T
SWD	D	T
SWIM	D	T
SWP	D	T
UNI/O	D	T
USB4/TBT3 SB Channel	D	T
Wiegand	D	T

Compare Serie TravelLogic Models

See how the TL4134E compares to other models in the Serie TravelLogic series.

Specification	TL4134E Current	TL4134B	TL4234B
Channels	34	34	34
Timing Analysis	2 GHz	2 GHz	2 GHz
State Analysis	200 MHz	200 MHz	200 MHz
Memory	4 Gb	4 Gb	8 Gb
Bus Trigger	Tier I	Tier I, II	Tier I, II, III
Protocol Analyzer	Tier I	Tier I, II	Tier I, II, III
Interface	USB 3.0	USB 3.0	USB 3.0
List Price	$1,400	$2,500	$3,500
