LA4068B
Serie LA4000 — Logic Analyzer

LA4068B

SKU: LA4068B

$11,000.00 En stock
Solicitar cotización
68 channels with 4 GHz timing analysis
Tier I + II bus trigger and protocol analyzer
Cascade multiple units for expanded channel count
Adds eMMC, eSPI, NAND Flash, SD triggers
U.S. based engineering support
Datasheet (PDF) User Manual (PDF)

About the LA4068B

The LA4068B adds Tier II protocol triggers to the 68-channel LA4000 platform, unlocking hardware-level triggering on storage protocols (eMMC, NAND Flash, SD), computing buses (eSPI), and power interfaces (SVID). Built for semiconductor validation and platform bring-up.

Key Highlights

  • Tier I + II: adds eMMC, eSPI, NAND Flash, SD, SVID triggers
  • Cascade multiple units for expanded channel count
  • Power sequence validation support

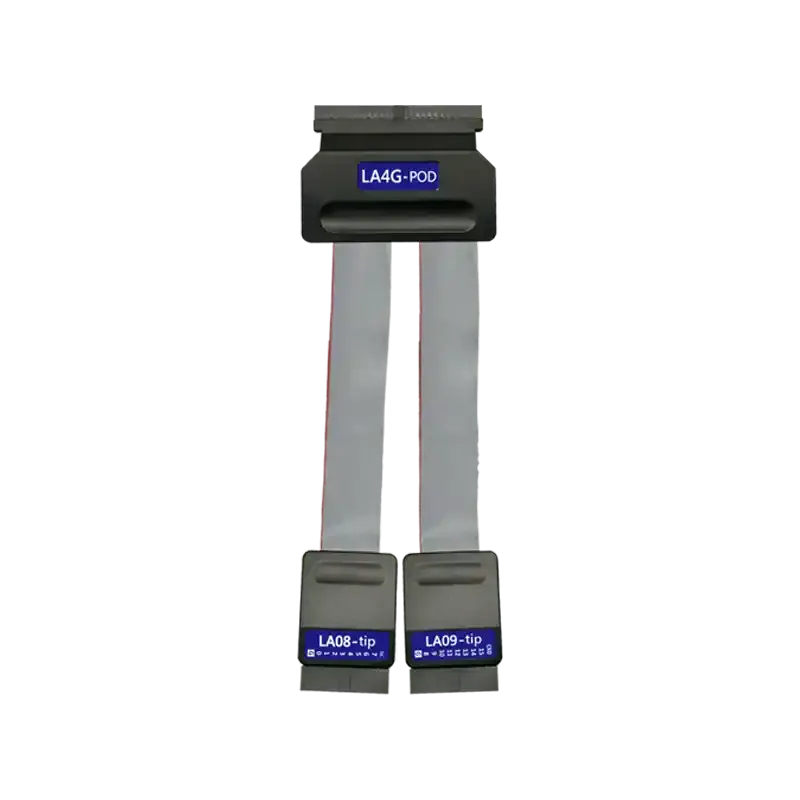

  • Optional LVDS input pod
Channels 68
Timing Analysis 4 GHz
State Analysis 400 MHz
Protocol Decode Tier I + II (100+ total)
Cascading Yes (multi-unit synchronized)
Interface USB 3.0
OS Support Windows 10 / 11 · Linux (beta)
Soporte para Linux disponible Beta

Una aplicación nativa de Linux está disponible en beta.

Descargar desde GitHub

Soporte de protocolos

120+ protocolos decodificados · 110+ con disparo por hardware

120 protocolos soportados·DDecodificación   TDisparo   EVValidación eléctrica

ProtocoloDecodificaciónDisparo
I2CDT
MIPI I3CDT
SPIDT
UARTDT

Compare Serie LA4000 Models

See how the LA4068B compares to other models in the Serie LA4000 series.

Specification LA4068E LA4068B Current LA4136E LA4136B
Channels 68 68 136 136
Timing Analysis 4 GHz 4 GHz 4 GHz 4 GHz
State Analysis 400 MHz 400 MHz 400 MHz 400 MHz
Memory 32 Gb 32 Gb 32 Gb 32 Gb
Bus Trigger Tier I Tier I, II Tier I Tier I, II
Protocol Analyzer Tier I Tier I, II Tier I Tier I, II
Cascading Yes Yes Yes Yes
List Price $8,700 $11,000 $12,100 $13,800
View all Serie LA4000 models →

Comparar

See how the LA4068B stacks up against the competition.

LA4000 vs Saleae Logic Pro 16

Protocolos compatibles

I2C SPI CAN FD UART MIPI I3C eMMC CAN 2.0B I2S eSPI SMBus PMBus SD UHS QSPI SVID MIPI RFFE DP AUX Modbus JTAG MIPI SPMI PDM MIPI SoundWire PCM TDM Ethernet MCTP LTPI MCTP Control PLDM M-PESTI NCSI SPDM USB4/TBT3 SB MIPI D-PHY MIPI DSI LP MII RMII RGMII GMII SGMII Power Sequence BiSS-C HDLC ProfiBus PWM NAND Flash Serial NOR Flash SPI NAND 10BASE-T1S OA3p OPEN Alliance TC6 USB 1.1 SWD
