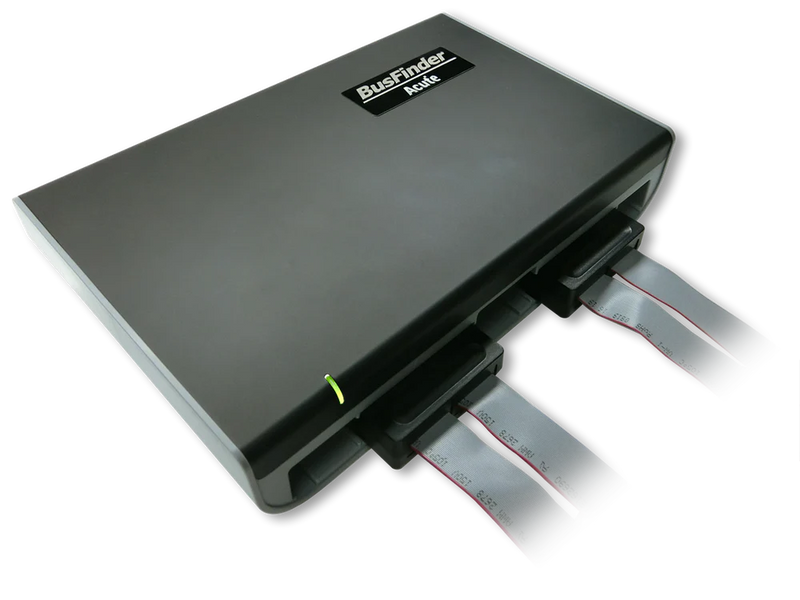

BF7264B+
SKU: BF7264B+
Specifications
⚠️ Note: The BF7264B+ has sold out and is officially discontinued. Understanding the importance of this tool in your work, we're dedicated to facilitating a seamless transition.
📢 We're thrilled to introduce the BF7264 Pro as its replacement, available on our website for your convenience.
Option |
BF7264B |
BF7264B+ |
|
eMMC 5.1 |
Yes | Yes |
|
MIPI D-PHY 1.2 |
Yes |
Yes |
|
NAND Flash |
Yes |
Yes |
|
SD 3.0 (SDIO 3.0) |
Yes | Yes |
| SD 4.1 | Yes | Yes |
| SGMII | Yes | Yes |
| UFS 2.1 | NO | Yes |
| Logic Analyzer Probe | Yes | Yes |
Protocol Analyzer: eMMC 5.1, MIPI D-PHY 1.2, NAND Flash, SD 3.0 (SDIO 3.0), SD 4.1 (UHS-II), SGMII, and UFS2.1
- Real-time data display, post-capture waveforms
- Trigger for commands or data
- Different active probes for different protocols for easier connections
- Filter data to save more commands
- Hide data for easy reading
- Search data for quick finding
- Statistics for commands and data
- Two voltage detects to find design bugs from voltage drop
- Use PC hard disk (SSD) to log long time data
- Protocol monitor like dash camera for long time surveillance (months)

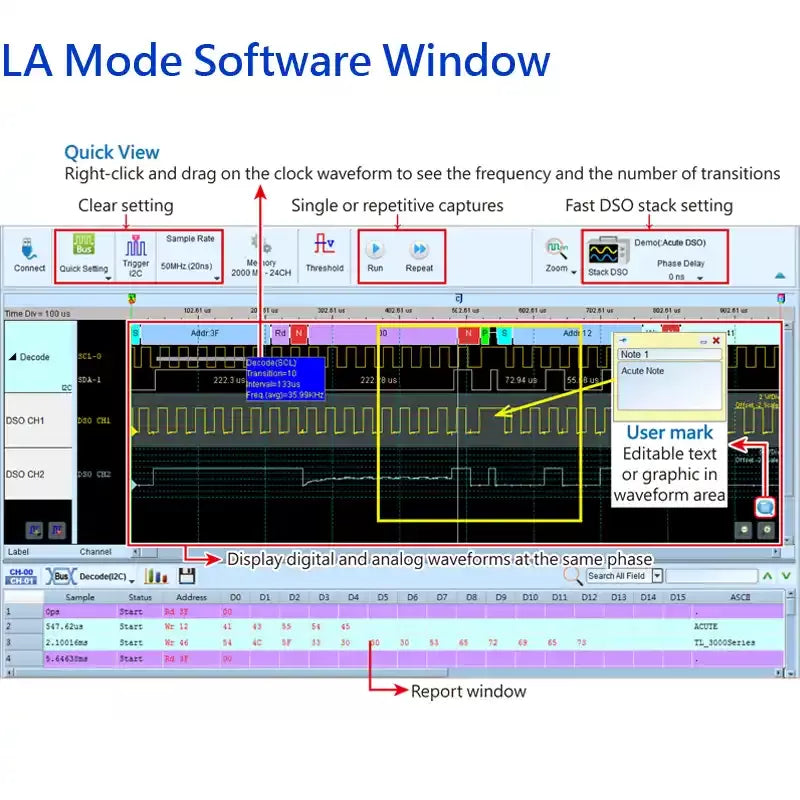

Logic Analyzer: eMMC 5.1, NAND Flash, SD 3.0 (SDIO 3.0), Serial Flash, SPI
- 2.4GHz timing analysis
- 8-state flow chart bus triggers
- Bus decodes with waveforms
- Stacks with a DSO to form as an MSO
